Introduction of basic parameters and battery performance of 483450 3.7V 850mAh lithium polymer battery

Battery Model and Basic Information

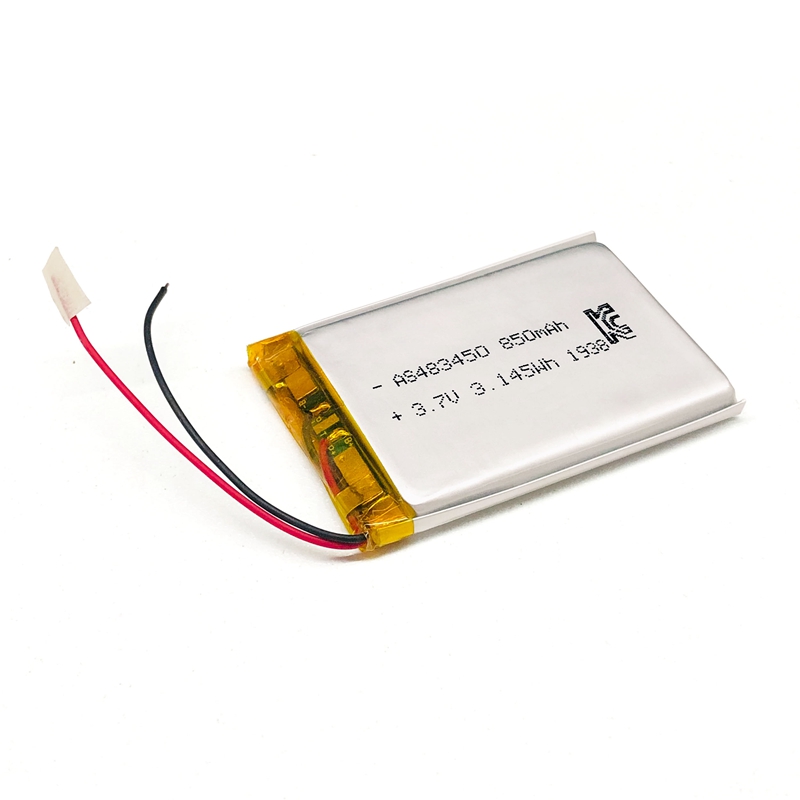

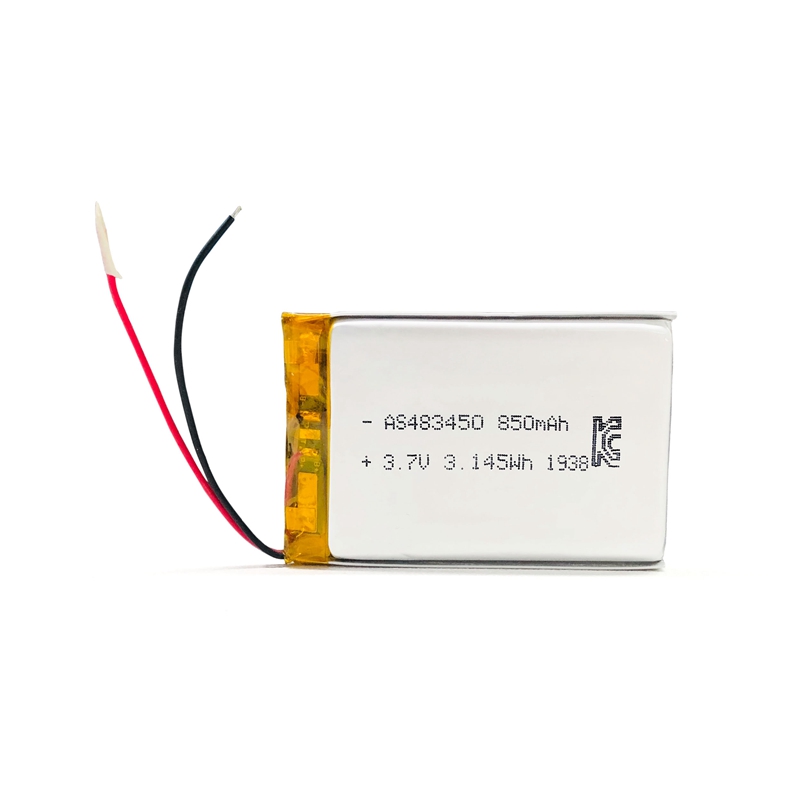

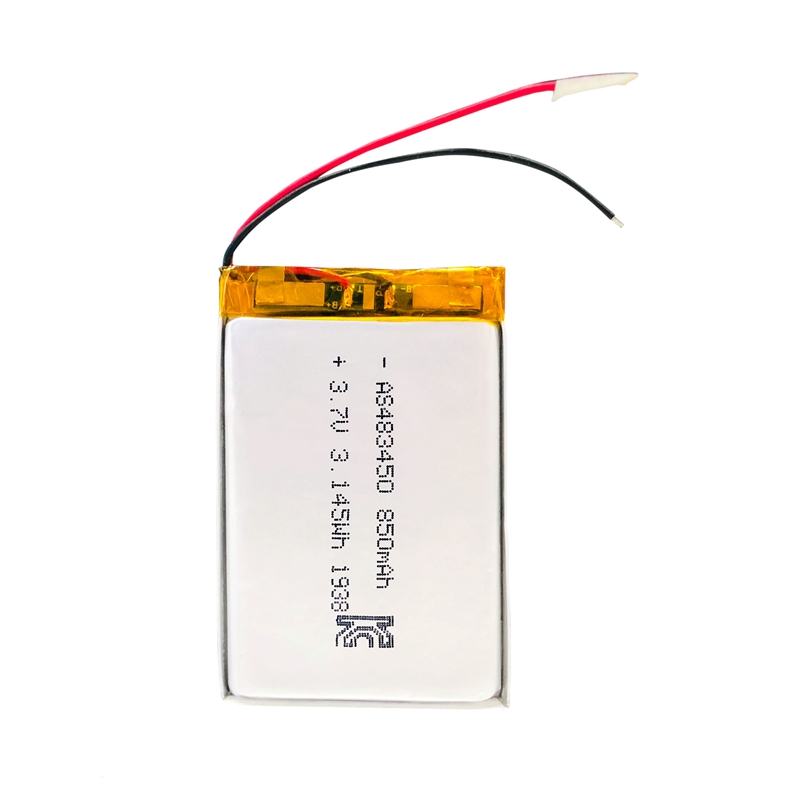

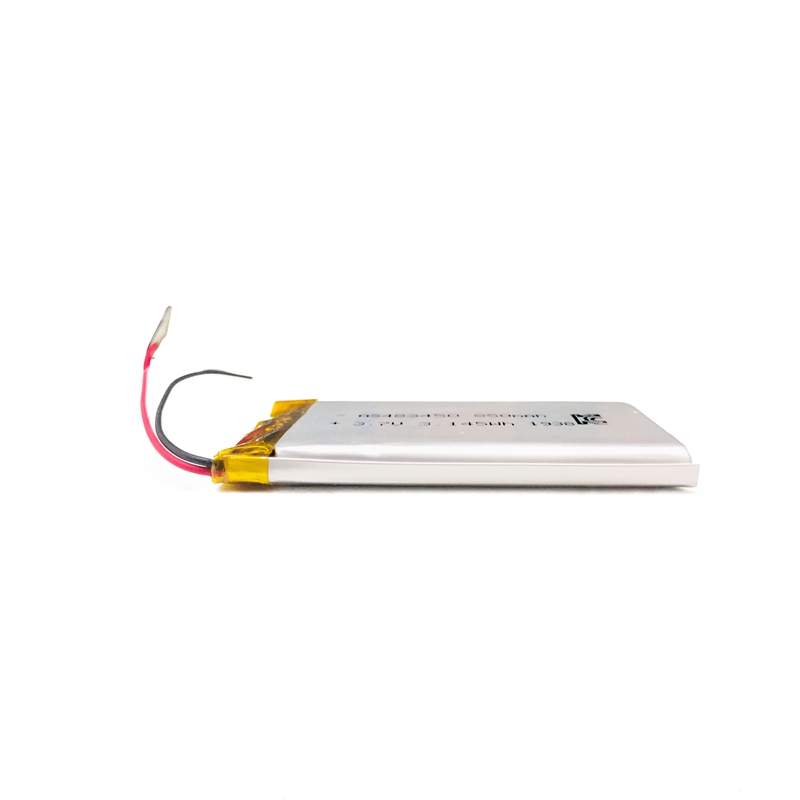

The AS483450 3.7V 850mAh lipo Lithium Polymer Battery, manufactured by Shenzhen A&S Power Technology Co., Ltd, represents a cutting-edge

solution for various electronic applications. This robust battery boasts a nominal voltage of 3.7V and an impressive capacity of 850mAh, making

it an ideal choice for devices requiring reliable and efficient power.

Battery Model: AS483450 3.7V 850mAh

Battery Type: Lithium Polymer Battery Cell or Pack

Factory Manufacturer: Shenzhen A&S Power Technology Co., Ltd

Battery Performance and Parameters

The AS483450 3.7V 850mAh battery boasts impressive performance metrics:

Typical Capacity: 850mAh  Temperature：25±5℃

Charge：0.2C

Discharge：0.2C

Minimum Capacity: 820mAh

Voltage: 3.7V

Max Discharge Current: 4000mAh  10~45℃

Max Charge Current: 850mAh  10~45℃

Continuous Discharge Current: 425mAh

AC Impedance Resistance:≤60mΩ    Cell

                                            ≤200mΩ Battery Pack

Life Cycle: 10min rest period after standard charge, 0.5C discharge to a cut-off voltage of 3.0V, 10min rest period, the capacity shall be

measured after 500 cycles of standard charge and discharge at 25±5℃.

Warrenty: A&S power offers 12 months gurantee period lithium polymer battery for our clients in case of cells with defects.

Physical Features

Despite its powerful capabilities, AS483450 3.7V 850mAh maintains a compact and lightweight design:

Cell Size: 4.8*34*50 mm（Thickness*Width*Height）

Pack Size: 5.0*34.5*52.5mm（Thickness*Width*Height）

Weight: Approximately 17.5g

Cycle Life: 500 times

Life Usage: 1 year

Please note that we could do customization for clients according to requirements like maxmium size, peak discharge rating and continuous

discharge rating, connector(type), wires( NTC; length), PCB protection, and applications or devices.

Safety Features

AS483450 3.7V 850mAh battery cell has passed UL1642, CE and multi-safety inspections.

CE: Conformité Européenne (CE) certification is a regulatory standard that verifies certain products are safe for sale and use in the European

Economic Area (EEA). Manufacturers place a CE marking on certified products to indicate that the product complies with European safety rules

and can be traded freely within the EEA.

UL1642 certification is essential for manufacturers and consumers of batteries, as it signifies that a battery has undergone thorough testing and

meets safety criteria for consumer electronics, electric vehicles, and medical devices. The certification requirements cover lithium-ion batteries to

avoid the risk of fire or explosion when they are used in products.

Protection Mechanisms

Over-charge Protection Voltage: 4.255--4.305V

Over-discharge Protection Voltage: 4.030--4.130V

Overcurrent protection current: 4.0--10.0A

Its protection circuit can provide multiple layers protection to avoid any internal short circuit or fire danger and set different protection mechanisms

to moniter battery working efficiency.

Operating Environment

The AS483450 3.7V 850mAh is designed to perform well across a wide range of environmental conditions:

Working Temperature Range

Charging Temperature: 0~+10℃  Max Charge: 170mA

                                    +10~+45℃ Max Charge: 850mA

Discharging Temperature:-20~+60℃

Recommended storage temperature: 25±2℃,at the shipment state

Less than 1 month: -10~+45℃

Less than 3 months: -10~+35℃

Less than 6 months: -10~+30℃

Applications

The versatile AS483450 3.7V 850mAh lipo battery is ideal for numerous applications, including:

Bluetooth headsets, Bluetooth speakers, Smart digital watches, Emergency lighting and Security systems, Gas detectors, Smart water meter,

Multicamera, Medical devices, Electronic cigarette, LED Driver, Sensor etc.

Advantages

High Energy Density: The A483450 3.7V 850mAh lipo battery offers a compact design without compromising on performance, which is crucial for

portable devices.

Lightweight Design: Weighing significantly less than traditional batteries, it enhances the overall portability of gadgets.

Durable Construction: Designed to endure multiple charge and discharge cycles, the battery ensures long-term reliability and stability.

Versatile Applications: This lithium polymer battery is suitable for a wide range of applications, including wearable tech, drones, remote controls,

and consumer electronics.

Stay tuned for more updates on the latest advancements in battery technology. For further details about the AS483450 3.7V 850mAh lipo battery

and other innovative products, visit Shenzhen A&S Power Technology Co., Ltd’s official website https://www.szaspower.com/.
