Introduction of basic parameters and battery performance of 461730 3.7V 200mAh lithium polymer battery

Battery Model and Basic Information

The AS461730 3.7V 200mAh lipo Lithium Polymer Battery, manufactured by Shenzhen A&S Power Technology Co., Ltd, represents a cutting-edge

solution for various electronic applications. This robust battery boasts a nominal voltage of 3.7V and an impressive capacity of 200mAh, making it

an ideal choice for devices requiring reliable and efficient power.

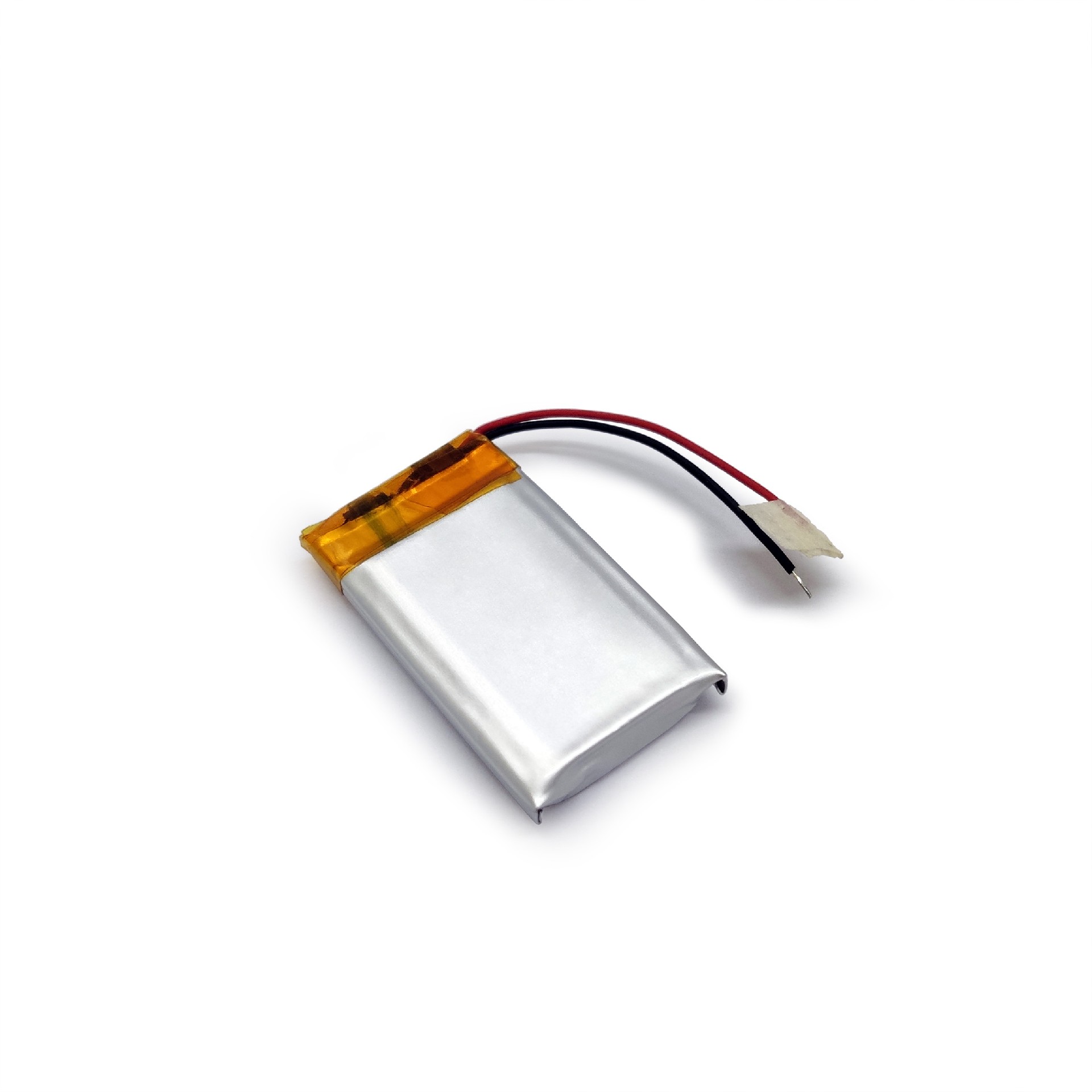

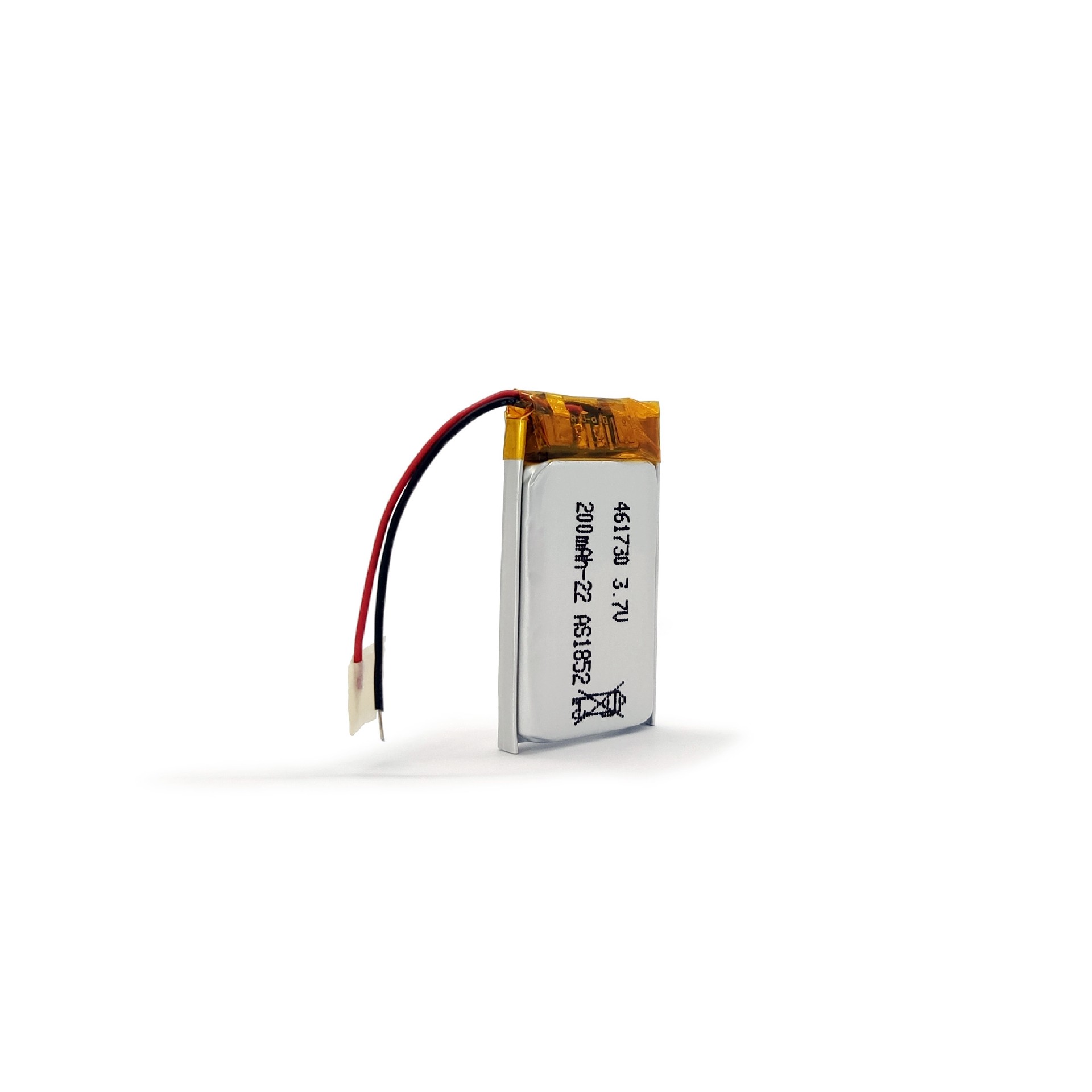

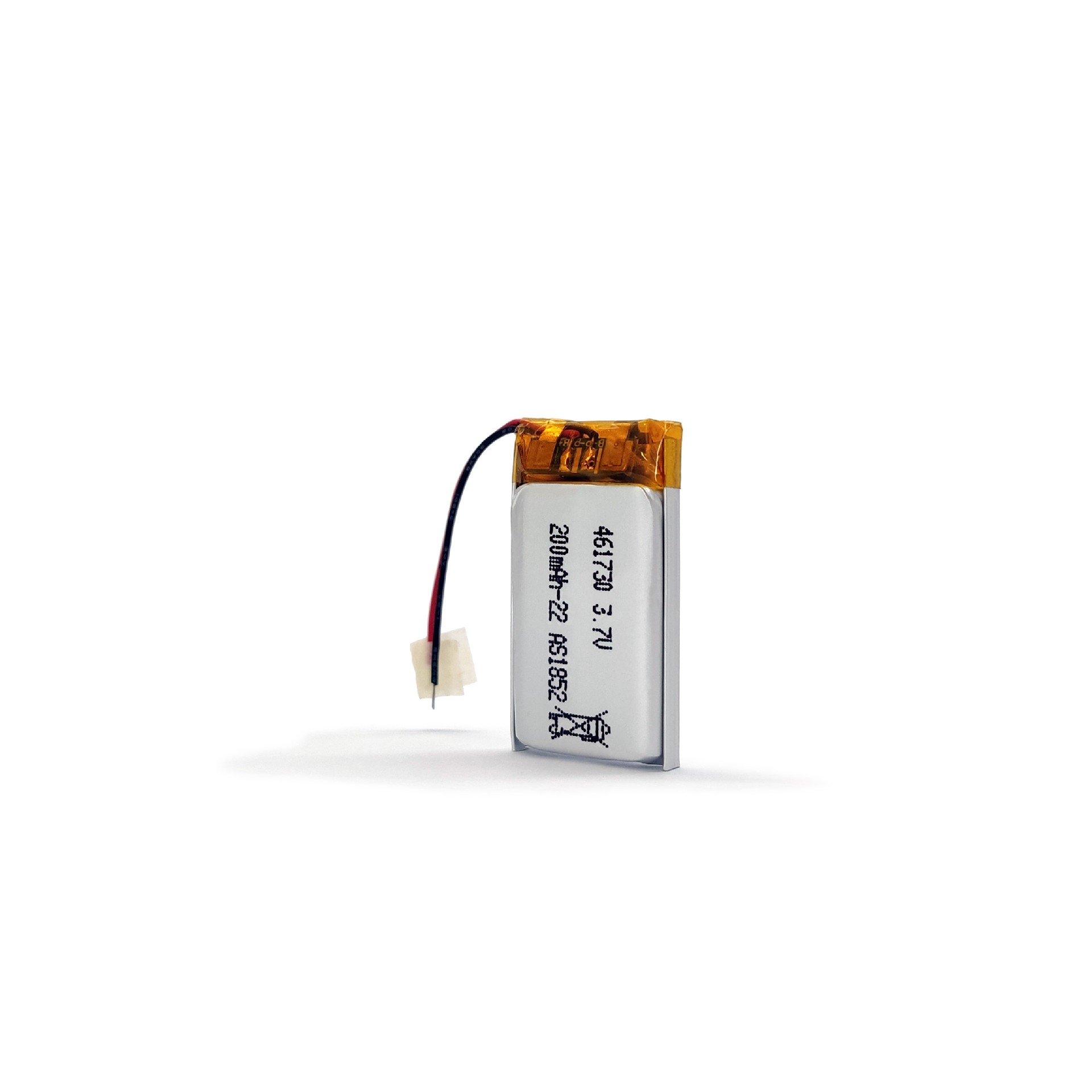

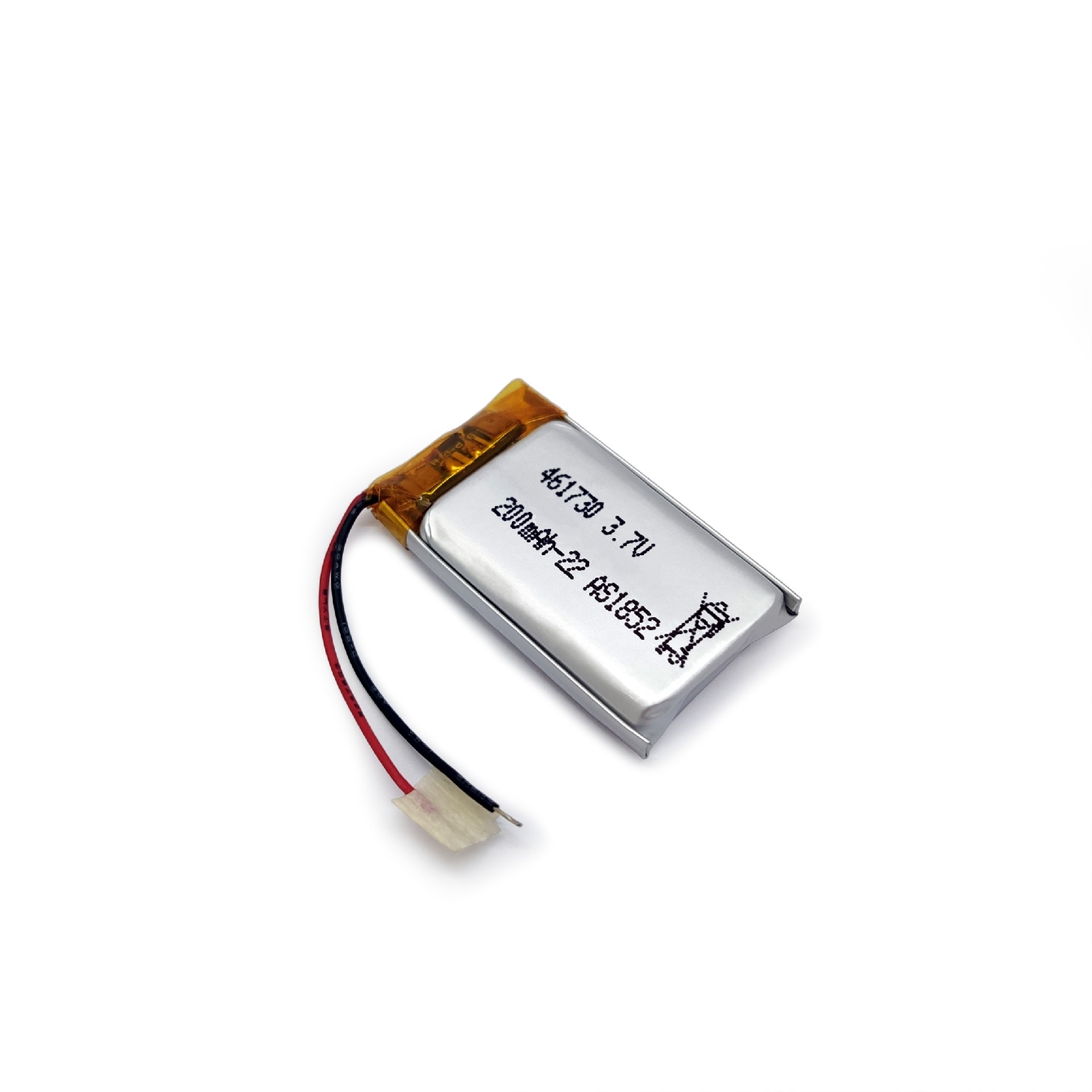

Battery Model: AS461730 3.7V 200mAh

Battery Type: Lithium Polymer Battery Cell or Pack

Manufacturer: Shenzhen A&S Power Technology Co., Ltd

Battery Performance and Parameters

The AS461730 3.7V 200mAh battery boasts impressive performance metrics:

Typical Capacity: 200mAh

Minimum Capacity: 190mAh

Voltage: 3.7V

Max Discharge Current: 200mAh

Max Charge Current: 200mAh

Continuous Discharge Current: 190mAh

AC Impedance Resistance: ≤200mΩ Cell

                                            ≤300mΩ Battery Pack

Life Cycle: 10min rest period after standard charge, 0.5C discharge to a cut-off voltage of 3.0V, 10min rest period, the capacity shall be measured

after 500 cycles of standard charge and discharge at 25±5℃.

Warrenty: A&S power offers 12 months gurantee period lithium polymer battery for our clients in case of cells with defects.

Physical Features

Despite its powerful capabilities, AS461730 3.7V 200mAh maintains a compact and lightweight design:

Cell Size: 4.6*17.0*30.0 mm（Thickness*Width*Height）

Pack Size: 4.6(4.83mm after 500 cycle)*17.5*32.5mm（Thickness*Width*Height）

                    15±3 mm (UL3302 30# AWG)

Weight: Approximately 4.2g

Cycle Life: 500 times

Life Usage: 1 year

The rectangle rechargeable lithium polymer battery cell or pack can be integrated into small, portable devices, while its cycle life ensures

long-term reliability.

Also, please note that we could do customization for clients according to requirements like maxmium size, peak discharge rating and

continuous discharge rating, connector(type), wires( NTC; length), PCB protection, and what devices you use for.

Safety Features

AS461730 3.7V 200mAh battery cell has passed UL1642, CE and multi-safety inspections.

CE: Conformité Européenne (CE) certification is a regulatory standard that verifies certain products are safe for sale and use in the

European Economic Area (EEA). Manufacturers place a CE marking on certified products to indicate that the product complies with

European safety rules and can be traded freely within the EEA.

UL1642 certification is essential for manufacturers and consumers of batteries, as it signifies that a battery has undergone thorough

testing and meets safety criteria for consumer electronics, electric vehicles, and medical devices. The certification requirements cover

lithium-ion batteries to avoid the risk of fire or explosion when they are used in products.

Protection Mechanisms

Over-charge Protection Voltage: 4.255--4.305V

Over-discharge Protection Voltage: 4.255--4.305V

Overcurrent protection current: 1.0--3.5A

Its protection circuit can provide multiple layers protection to avoid any internal short circuit or fire danger and set different protection

mechanisms to moniter battery working efficiency.

Operating Environment

The AS461730 3.7V 200mAh is designed to perform well across a wide range of environmental conditions.

Working Temperature Range

Charging Temperature: 0~+45℃  Max Charge: 40mA

                                        +10~+45℃ Max Charge: 200mA

Discharging Temperature: -20~+60℃

Recommended storage temperature: 25±2℃,at the shipment state

Less than 1 month: -10~+45℃

Less than 3 months: -10~+35℃

Less than 6 months: -10~+30℃

Applications

The versatile AS461730 3.7V 200mAh lipo battery is ideal for numerous applications, including:

Bluetooth headsets, Bluetooth speakers, Smart digital watches, Emergency lighting and Security systems, Gas detectors, Smart water

meter, Multicamera, Medical devices, Electronic cigarette, LED Driver, Sensor etc.

Advantages

High Energy Density: The A461730 3.7V 200mAh lipo battery offers a compact design without compromising on performance, which is

crucial for portable devices.

Lightweight Design: Weighing significantly less than traditional batteries, it enhances the overall portability of gadgets.

Durable Construction: Designed to endure multiple charge and discharge cycles, the battery ensures long-term reliability and stability.

Versatile Applications: This lithium polymer battery is suitable for a wide range of applications, including wearable tech, drones, remote

controls, and consumer electronics.
