Introduction of basic parameters and battery performance of 401030 3.7V 80mAh lithium polymer battery

Battery Model and Basic Information

The AS401030 Lithium Polymer Battery, manufactured by Shenzhen A&S Power Technology Co., Ltd, represents a cutting-edge solution for

various electronic applications. This robust battery boasts a nominal voltage of 3.7V and an impressive capacity of 80mAh, making it an ideal

choice for devices requiring reliable and efficient power.

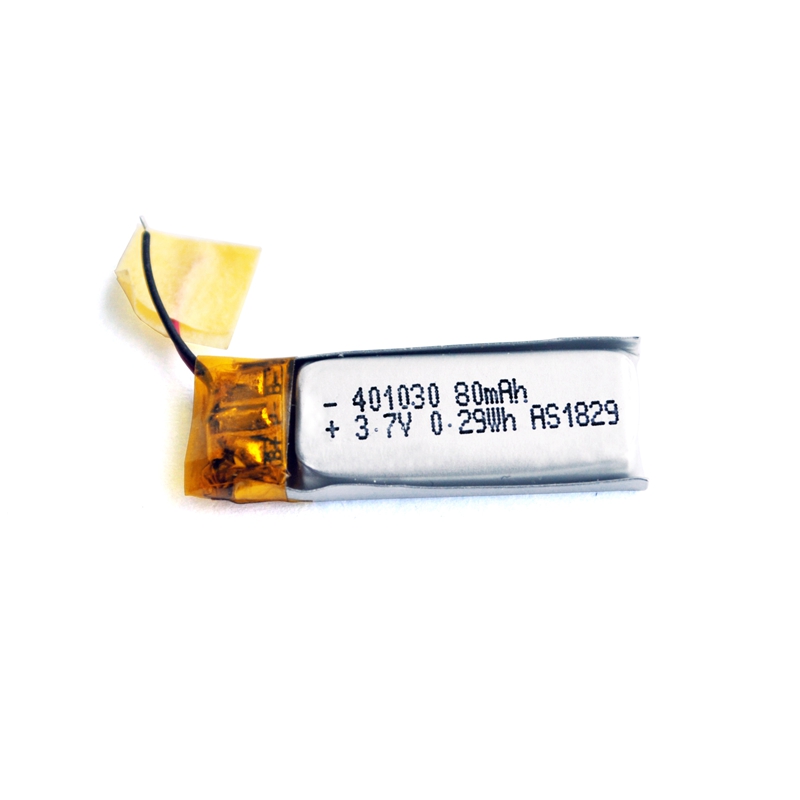

Battery Model: AS401030 3.7V 80mAh

Battery Type: Lithium Polymer Battery Cell or Pack

Manufacturer: Shenzhen A&S Power Technology Co., Ltd

Battery Performance and Parameters

The AS401030 battery boasts impressive performance metrics:

Typical Capacity: 80mAh

Minimum Capacity: 80mAh

Voltage: 3.7V

Max Discharge Current: 80mAh

Fast Charge Current: 160mAh

AC Impedance Resistance: ≤400mΩ

Life Cycle: 10min rest period after standard charge, 0.5C discharge to a cut-off voltage of 3.0V, 10min rest period, the capacity shall be

measured after 500 cycles of standard charge and discharge at 25±5℃.

Warrenty: A&S power offers one-year gurantee period lithium polymer battery for our clients in case of cells with defects.

Physical Features

Despite its powerful capabilities, AS401030 3.7V 80mAh maintains a compact and lightweight design:

Size: 4.0 *10.5*30.0 mm（Thickness*Width*Height）

Weight: Approximately 3.2g

Cycle Life: 500 times

Life Usage: 1 year

The rectangle rechargeable lithium polymer battery cell or pack can be integrated into small, portable devices, while its cycle life ensures

long-term reliability.

Also, please note that we could do customization for clients according to requirements like maxmium size, peak discharge rating and

continuous discharge rating, connector(type), wires( NTC; length), PCB protection, and what devices you use for.

Safety Features

AS401030 3.7V 80mAh battery pack has passed CE, UN38.3, UL1642, RoHS and multi-safety inspections.

CE: Conformité Européenne (CE) certification is a regulatory standard that verifies certain products are safe for sale and use in the

European Economic Area (EEA). Manufacturers place a CE marking on certified products to indicate that the product complies with

European safety rules and can be traded freely within the EEA.

UN38.3: Battery chemistries that are lithium-based must undergo UN38.3 testing requirements before being transported. This testing

certifies that the batteries are safe and will not pose a safety risk during shipping over air, water, rail, or road transportation methods.

RoHS: RoHS stands for Restriction of Hazardous Substances. RoHS, also known as Directive 2002/95/EC, originated in the European

Union and restricts the use of specific hazardous materials found in electrical and electronic products (known as EEE).

UL1642 certification is essential for manufacturers and consumers of batteries, as it signifies that a battery has undergone thorough

testing and meets safety criteria for consumer electronics, electric vehicles, and medical devices. The certification requirements cover

lithium-ion batteries to avoid the risk of fire or explosion when they are used in products.

Protection Mechanisms

Over-charge Protection Voltage: 4.28±0.025V

Over-discharge Protection Voltage: 3.00±0.05V

Overcurrent protection current: 1.0~3.0A

Its protection circuit can provide multiple layers protection to avoid any internal short circuit or fire danger and set different protection

mechanisms to moniter battery working efficiency.

Operating Environment

The AS401030 is designed to perform well across a wide range of environmental conditions:

Working Temperature Range

Charging Temperature: 0~+45℃

Discharging Temperature:-20~+60℃

Recommended Storage Temperature Range: 25±2℃, at the shipment state

Less than 1 month: -20~+45℃

Less than 3 months: -20~+35℃

Less than 6 months: -20~+30℃

Applications

The versatile AS401030 battery is ideal for numerous applications, including:

Bluetooth headsets, Bluetooth speakers, Smart digital watches, Emergency lighting and Security systems, Gas detectors, Smart water

meter, Multicamera, Medical devices, Electronic cigarette, LED Driver, Sensor etc.

Advantages

High Energy Density: The AS401030 battery offers a compact design without compromising on performance, which is crucial for portable

devices.

Lightweight Design: Weighing significantly less than traditional batteries, it enhances the overall portability of gadgets.

Durable Construction: Designed to endure multiple charge and discharge cycles, the battery ensures long-term reliability and stability.

Versatile Applications: This lithium polymer battery is suitable for a wide range of applications, including wearable tech, drones, remote

controls, and consumer electronics.
