Introduction of basic parameters and battery performance of 352728 3.7V 240mAh lithium polymer battery

Battery Model and Basic Information

The AS352728 Lithium Polymer Battery, manufactured by Shenzhen A&S Power Technology Co., Ltd, represents a cutting-edge solution for

various electronic applications. This robust battery boasts a nominal voltage of 3.7V and an impressive capacity of 240mAh, making it an ideal

choice for devices requiring reliable and efficient power.

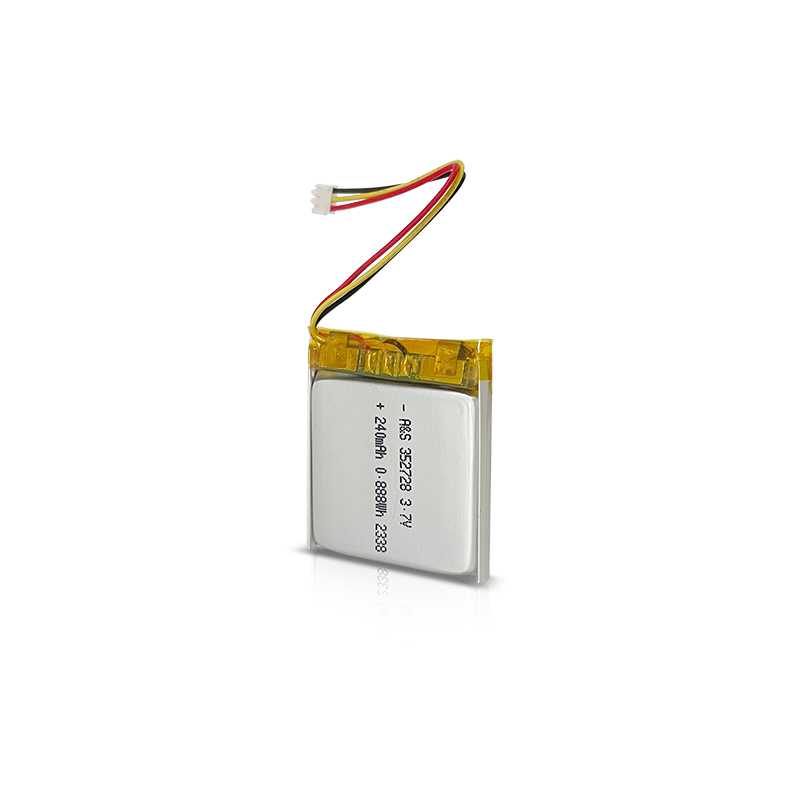

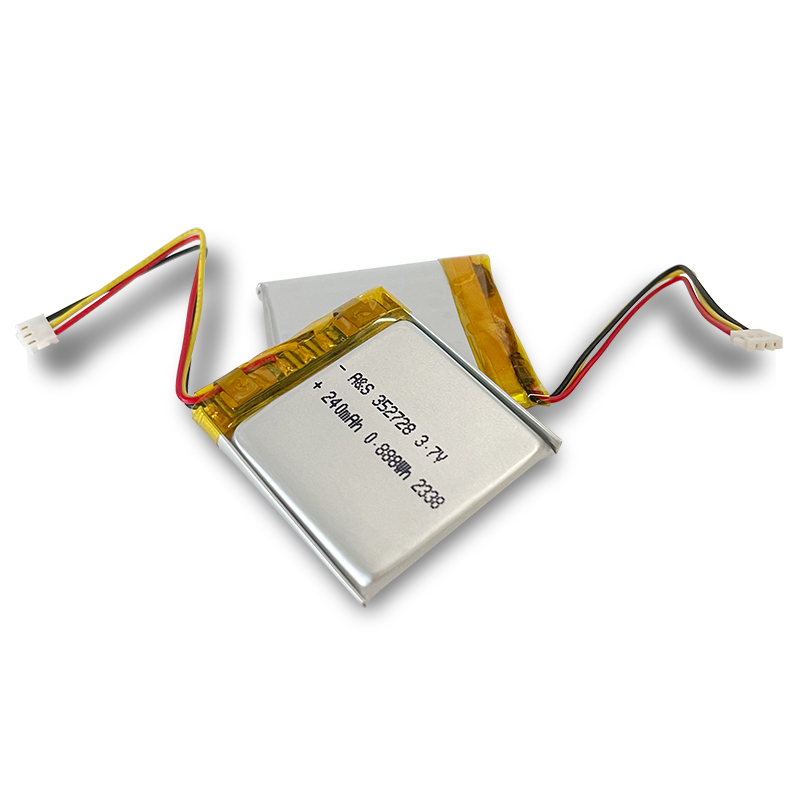

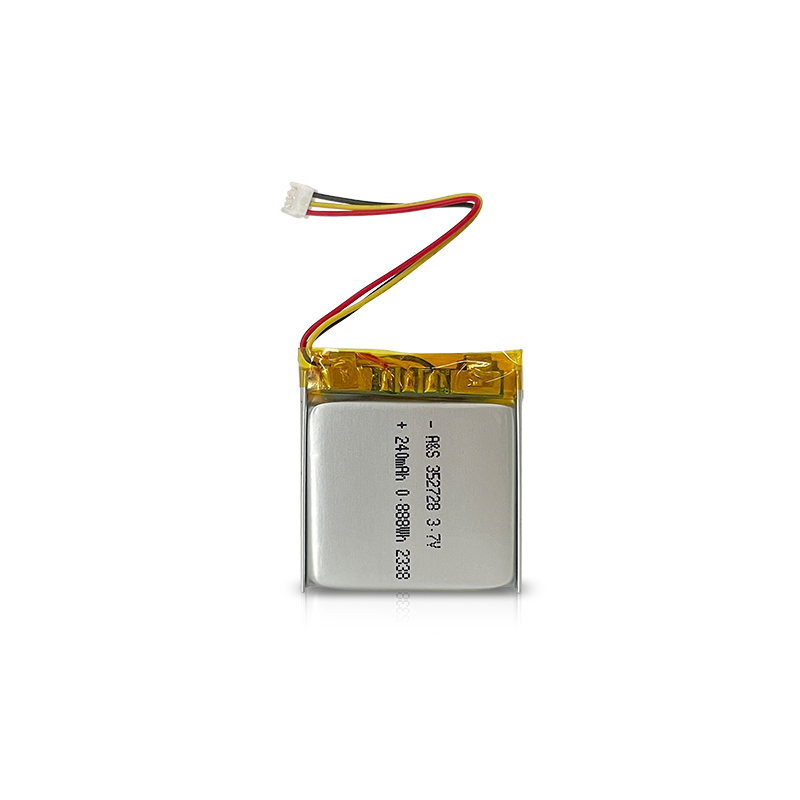

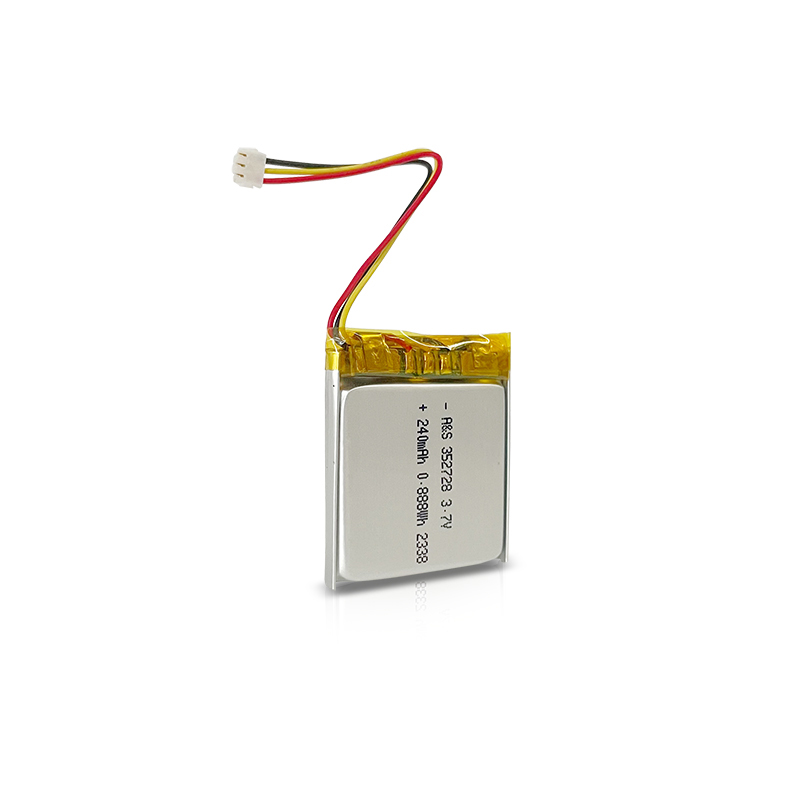

Battery Model: AS352728 3.7V 240mAh

Battery Type: Lithium Polymer Battery Cell or Pack

Manufacturer: Shenzhen A&S Power Technology Co., Ltd

Battery Performance and Parameters

The AS352728 battery boasts impressive performance metrics:

Typical Capacity: 240mAh

Minimum Capacity: 200mAh

Voltage: 3.7V

Continuous Discharge Current: 120mAh

Max Discharge Current: 240mAh

Max Charge Current: 240mAh

AC Impedance Resistance: ≤200mΩ Cell

                                             ≤300mΩ Battery Pack

Life Cycle: 10min rest period after standard charge, 0.5C discharge to a cut-off voltage of 3.0V, 10min rest period, the capacity shall be

measured after 500 cycles of standard charge and discharge at 25±5℃.

Warrenty: A&S power offers one-year gurantee period lithium polymer battery for our clients in case of cells with defects.

Physical Features

Despite its powerful capabilities, AS352728 3.7V 240mAh maintains a compact and lightweight design:

Size: 3.4 *26.5*28.0 mm（Thickness*Width*Height）

Weight: Approximately 4.5g

Cycle Life: 500 times

Life Usage: 1 year

The rectangle rechargeable lithium polymer battery cell or pack can be integrated into small, portable devices, while its cycle life ensures

long-term reliability.

Also, please note that we could do customization for clients according to requirements like maxmium size, peak discharge rating and

continuous discharge rating, connector(type), wires( NTC; length), PCB protection, and what devices you use for.

Safety Features

AS352728 3.7V 240mAh battery pack has passed CE, CB(IEC62133), UN38.3 and multi-safety inspections.

CE: Conformité Européenne (CE) certification is a regulatory standard that verifies certain products are safe for sale and use in the European

Economic Area (EEA). Manufacturers place a CE marking on certified products to indicate that the product complies with European safety

rules and can be traded freely within the EEA.

CB: The IEC has established an arrangement for the mutual acceptance of test reports in the field of electrical and electronic equipment: the

IECEE Certification Body(CB) Scheme.

UN38.3: Battery chemistries that are lithium-based must undergo UN38.3 testing requirements before being transported. This testing certifies

that the batteries are safe and will not pose a safety risk during shipping over air, water, rail, or road transportation methods.

Protection Mechanisms

Over-charge Protection Voltage: 4.255--4.305V

Over-discharge Protection Voltage: 2.750--2.850V

Overcurrent protection current: 1.0~3.5A

Its protection circuit can provide multiple layers protection to avoid any internal short circuit or fire danger and set different protection

mechanisms to moniter battery working efficiency.

Operating Environment

The AS352728 is designed to perform well across a wide range of environmental conditions:

Working Temperature Range

Charging Temperature: 0~+10℃ Max Charge: 48mA

+10~+45℃ Max Charge: 240mA

Discharging Temperature:-20~+60℃

Recommended Storage Temperature Range: 25±2℃, at the shipment state

Less than 1 month: -10~+45℃

Less than 3 months: -10~+35℃

Less than 6 months: -10~+30℃

Applications

The versatile AS352728 battery is ideal for numerous applications, including:

Bluetooth headsets, Bluetooth speakers, Smart digital watches, Emergency lighting and Security systems, Gas detectors, Smart water meter,

Multicamera, Medical devices, Electronic cigarette, LED Driver, Sensor etc.

Advantages

High Energy Density: The AS352728 battery offers a compact design without compromising on performance, which is crucial for portable

devices.

Lightweight Design: Weighing significantly less than traditional batteries, it enhances the overall portability of gadgets.

Durable Construction: Designed to endure multiple charge and discharge cycles, the battery ensures long-term reliability and stability.

Versatile Applications: This lithium polymer battery is suitable for a wide range of applications, including wearable tech, drones, remote controls,

and consumer electronics.

Stay tuned for more updates on the latest advancements in battery technology. For further details about the AS352728 and other innovative

products, visit Shenzhen A&S Power Technology Co., Ltd’s official website https://www.szaspower.com/.
