Introduction of basic parameters and battery performance of 505055 3.8V 1800mAh lithium polymer battery

Battery Model and Basic Information

The AS505055 3.8V 1800mAh lipo Lithium Polymer Battery, manufactured by Shenzhen A&S Power Technology Co., Ltd, represents a

cutting-edge solution for various electronic applications. This robust battery boasts a nominal voltage of 3.8V and an impressive

capacity of 1800mAh, making it an ideal choice for devices requiring reliable and efficient power.

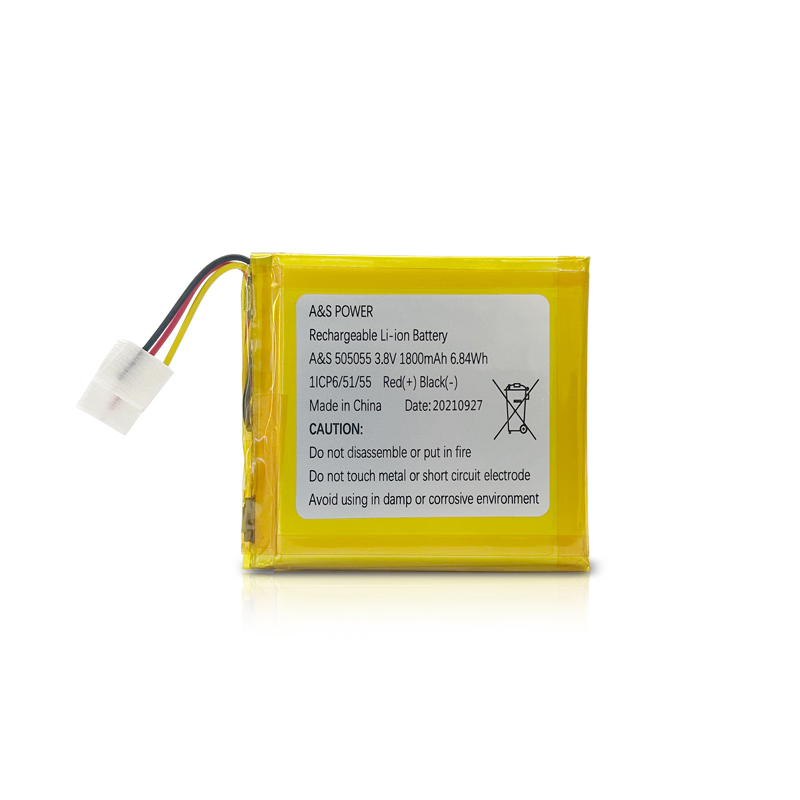

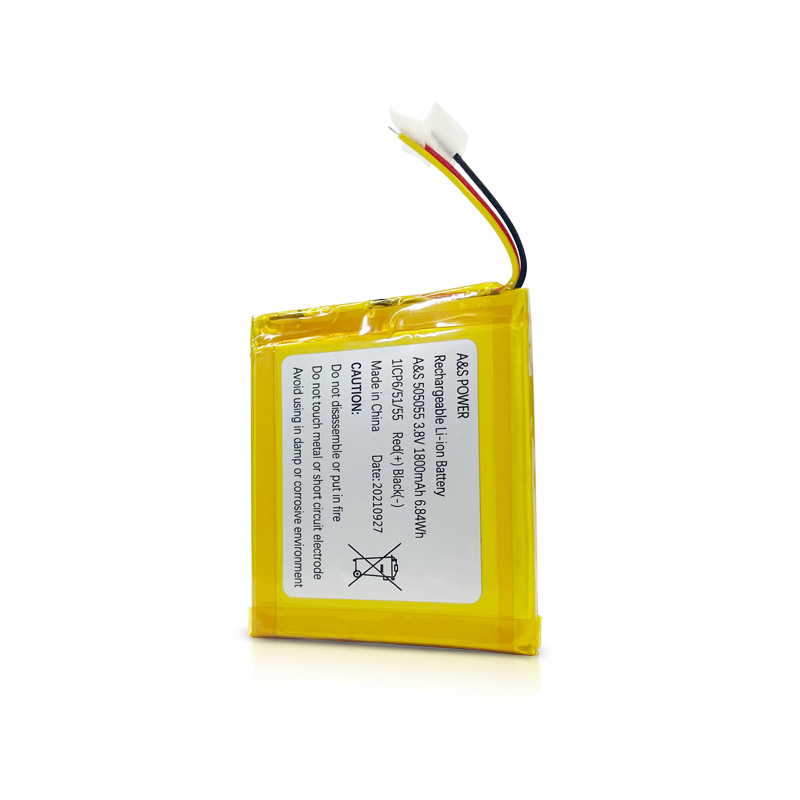

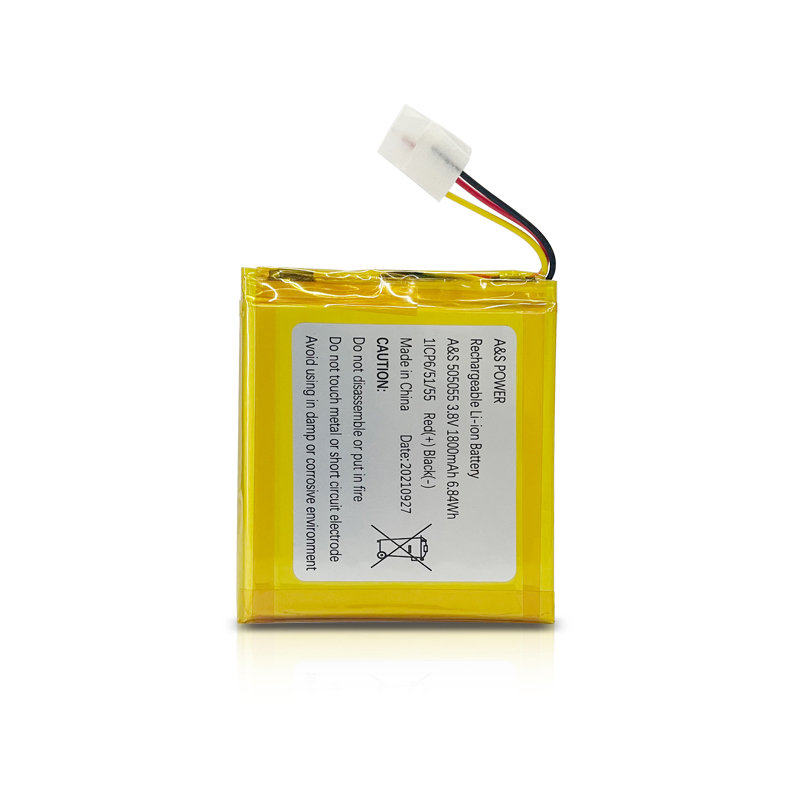

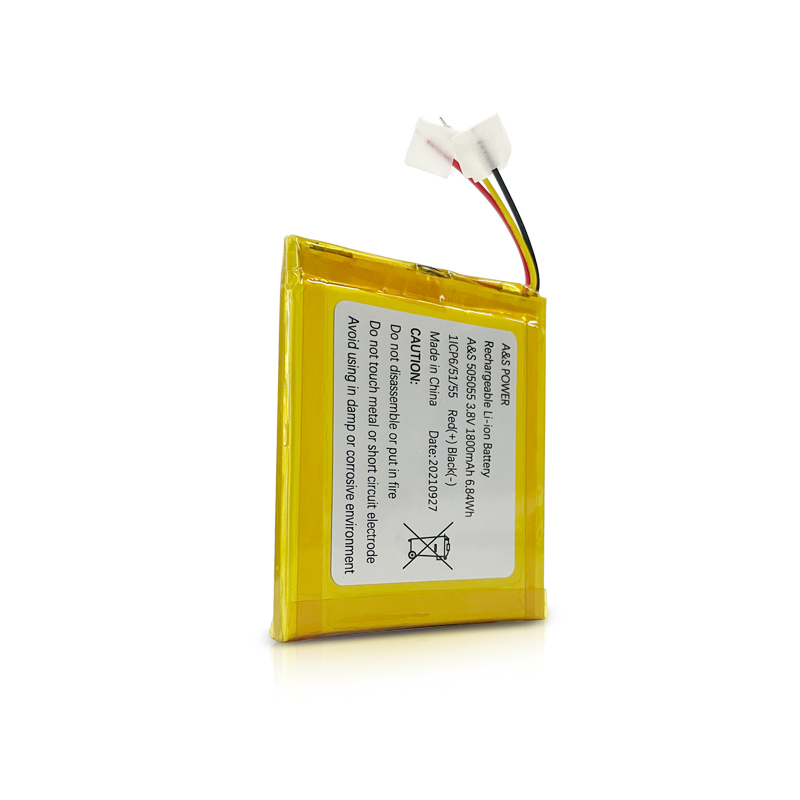

Battery Model: AS505055 3.8V 1800mAh

Battery Type: Lithium Polymer Battery Cell or Pack

Factory Manufacturer: Shenzhen A&S Power Technology Co., Ltd

Battery Performance and Parameters

The AS505055 3.8V 1800mAh battery boasts impressive performance metrics:

Typical Capacity: 1800mAh

Minimum Capacity: 1650mAh

AC Impedance Resistance: ≤60mΩ Cell

                                            ≤280mΩ Battery Pack

Norminal Voltage: 3.8V

Charge Volatage: 4.35V

Max Charge Continuous: 1000mAh

Discharge Continuous: 900mAh

Max Discharge Continuous: 1500mAh  +10℃~+45℃

Life Cycle: 10min rest period after standard charge, 0.5C discharge to a cut-off voltage of 3.0V, 10min rest period, the capacity shall be

measured after 500 cycles of standard charge and discharge at 25±5℃.

Warrenty: A&S power offers 12 months gurantee period lithium polymer battery for our clients in case of cells with defects.

Physical Features

Despite its powerful capabilities, AS505055 3.8V 1800mAh maintains a compact and lightweight design:

Cell Size: 5.0*50.0*55.0mm（Thickness*Width*Height）

Pack Size: 5.2*50.5*57.5mm（Thickness*Width*Height）

Weight: Approximately 36.0g

Cycle Life: over 500 times

Life Usage: 1 year

Please note that we could do customization for clients according to requirements like internal materials, shape, maxmium size, peak

discharge rating and continuous discharge rating, connector(type), wires( NTC; length), PCB protection, and applications or devices.

Safety Features

Protection Mechanisms:

Over-Charge Detection Voltage: 4.380--4.420V

Over-Discharge Detection Voltage: 2.950--3.050V

Overcurrent protection current: 1.5--3.5A

Its protection circuit can provide multiple layers protection to avoid any internal short circuit or fire danger and set different protection

mechanisms to moniter battery working efficiency.

AS505055 3.7V 1800mAh battery pack has passed UL1642，UL2054，CB(17)，UN38.3，WERCS，CE and multi-safety inspections.

CE: Conformité Européenne (CE) certification is a regulatory standard that verifies certain products are safe for sale and use in the

European Economic Area (EEA). Manufacturers place a CE marking on certified products to indicate that the product complies with

European safety rules and can be traded freely within the EEA.

UL1642 certification is essential for manufacturers and consumers of batteries, as it signifies that a battery has undergone thorough

testing and meets safety criteria for consumer electronics, electric vehicles, and medical devices. The certification requirements cover

lithium-ion batteries to avoid the risk of fire or explosion when they are used in products.

UL2054: UL2054 certification requirements cover portable primary (non-rechargeable) and secondary (rechargeable) lithium-ion

batteries for use as a power supply in goods. These lithium-ion batteries consist of either a single electrochemical cell or two or more

lithium-ion cells connected in parallels or series, or both, that convert chemical energy into electrical energy by chemical reaction.It

intends to reduce the risk of explosion or fire when lithium-ion batteries are working in a device. The proper use of these lithium-ion

batteries in a particular application is dependent on their use in a complete product that complies with the requirements applicable to

such a product.

CB certification is a globally recognized certification scheme that allows products to be sold in over 50 countries. It's issued by a

certification body (NCB) under the IECEE (IEC System for Conformity Testing and Certification of Electrical and Electronic Equipment).

UN 38.3 details environmental, mechanical, and electrical requirements for all lithium cells and batteries. Manufacturers of lithium

batteries and products using lithium batteries must demonstrate compliance in the design, manufacturing and distribution of their

products to ensure the safety of lithium batteries during transportation.

WERCS, or Worldwide Environmental Regulatory Compliance Solutions, is a company that helps manufacturers and distributors in

the electrical and electronics sector comply with environmental regulations.

Operating Environment

The AS505055 3.8V 1800mAh is designed to perform well across a wide range of environmental conditions:

Working Temperature Range:

Charging Temperature: 0~+10℃

                                    +10~45℃

Discharging Temperature: -20~+70℃

Recommended storage temperature: 25±2℃,at the shipment state

Less than 1 month: -10~+45℃

Less than 3 months: -10~+35℃

Less than 6 months: -10~+30℃

Applications

The versatile AS505055 3.8V 1800mAh lipo battery is ideal for numerous applications, including:

Bluetooth headsets, Bluetooth speakers, Smart digital watches, Emergency lighting and Security systems, Gas detectors, Smart

water meter, Multicamera, Medical devices, Electronic cigarette, LED Driver, Sensor etc.

Advantages

High Energy Density: The AS505055 3.8V 1800mAh lipo battery offers a compact design without compromising on performance,

which is crucial for portable devices.

Lightweight Design: Weighing significantly less than traditional batteries, it enhances the overall portability of gadgets.

Durable Construction: Designed to endure multiple charge and discharge cycles, the battery ensures long-term reliability and

stability.

Versatile Applications: This lithium polymer battery is suitable for a wide range of applications, including wearable tech, drones,

remote controls, and consumer electronics.

Stay tuned for more updates on the latest advancements in battery technology. For further details about the AS505055 3.8V

1800mAh lipo battery and other innovative products, visit Shenzhen A&S Power Technology Co., Ltd’s official website

https://www.szaspower.com/.
