Introduction of basic parameters and battery performance of 502030 3.7V 250mAh lithium polymer battery

Battery Model and Basic Information

The AS502030 3.7V 250mAh lipo Lithium Polymer Battery, manufactured by Shenzhen A&S Power Technology Co., Ltd, represents a cutting-edge

solution for various electronic applications. This robust battery boasts a nominal voltage of 3.7V and an impressive capacity of 250mAh, making it

an ideal choice for devices requiring reliable and efficient power.

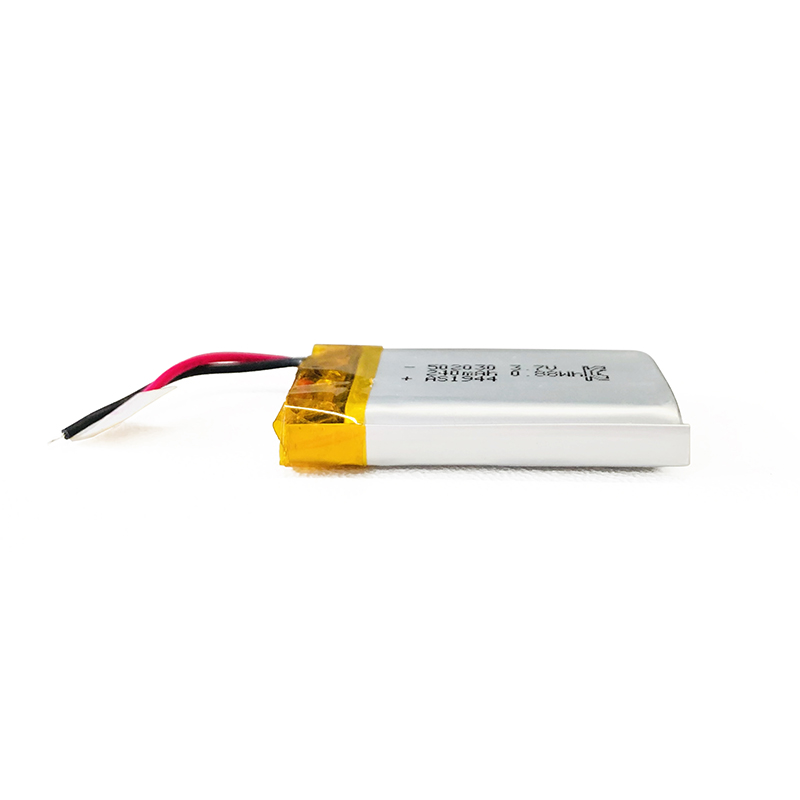

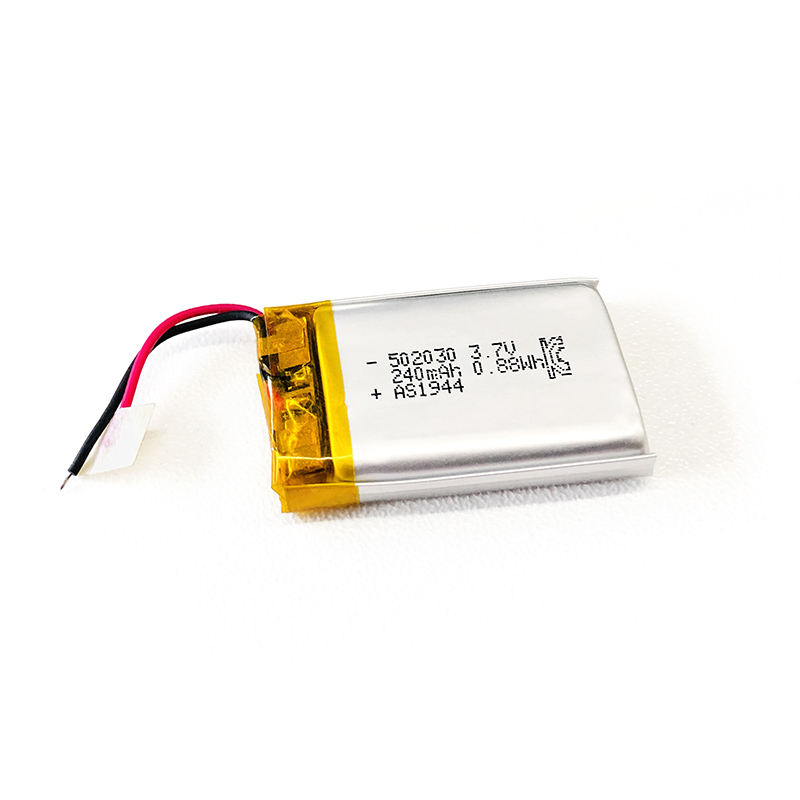

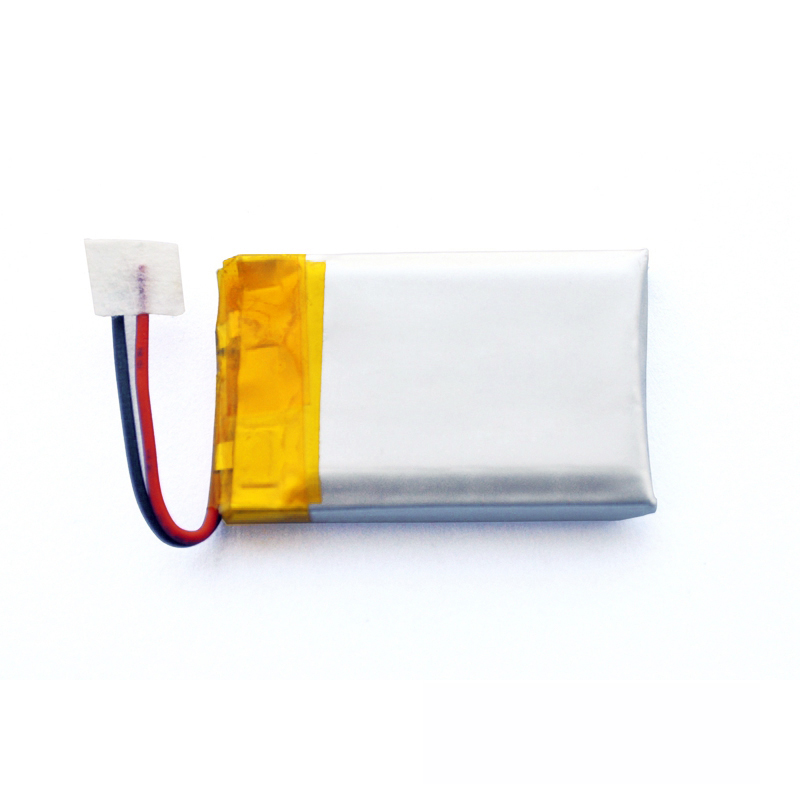

Battery Model: AS502030 3.7V 250mAh

Battery Type: Lithium Polymer Battery Cell or Pack

Factory Manufacturer: Shenzhen A&S Power Technology Co., Ltd

Battery Performance and Parameters

The AS502030 3.7V 250mAh battery boasts impressive performance metrics:

Typical Capacity: 250mAh

Minimum Capacity: 240mAh

AC Impedance Resistance: ≤80mΩ Cell

≤260mΩ Battery Pack

Norminal Voltage: 3.7V

Charge Volatage: 4.2V

Max Charge Continuous: 250mAh   +10℃~+45℃

Discharge Continuous: 125mAh

Max Discharge Continuous: 250mAh  +10℃~+45℃

Life Cycle: 10min rest period after standard charge, 0.5C discharge to a cut-off voltage of 3.0V, 10min rest period, the capacity shall be measured

after 500 cycles of standard charge and discharge at 25±5℃.

Warrenty: A&S power offers 12 months gurantee period lithium polymer battery for our clients in case of cells with defects.

Physical Features

Despite its powerful capabilities, AS502030 3.7V 250mAh maintains a compact and lightweight design:

Cell Size: 5.0*20.5*30.5mm（Thickness*Width*Height）

Pack Size: 5.2*21.0*32.5mm（Thickness*Width*Height）

Weight: Approximately 5g

Cycle Life: 500 times

Life Usage: 1 year

Please note that we could do customization for clients according to requirements like internal materials, shape, maxmium size, peak discharge

rating and continuous discharge rating, connector(type), wires( NTC; length), PCB protection, and applications or devices.

Safety Features

Protection Mechanisms:

Over-Charge Detection Voltage: 4.255--4.305V

Over-Discharge Detection Voltage: 2.750--2.850V

Overcurrent protection current: 1.0--3.5A

Its protection circuit can provide multiple layers protection to avoid any internal short circuit or fire danger and set different protection mechanisms

to moniter battery working efficiency.

AS502030 3.7V 250mAh battery pack has passed UL1642, BIS, UN38.3, WERCS, CE and multi-safety inspections.

CE: Conformité Européenne (CE) certification is a regulatory standard that verifies certain products are safe for sale and use in the European

Economic Area (EEA). Manufacturers place a CE marking on certified products to indicate that the product complies with European safety rules

and can be traded freely within the EEA.

UL1642 certification is essential for manufacturers and consumers of batteries, as it signifies that a battery has undergone thorough testing and

meets safety criteria for consumer electronics, electric vehicles, and medical devices. The certification requirements cover lithium-ion batteries to

avoid the risk of fire or explosion when they are used in products.

UN38.3: Battery chemistries that are lithium-based must undergo UN38.3 testing requirements before being transported. This testing certifies that

the batteries are safe and will not pose a safety risk during shipping over air, water, rail, or road transportation methods.

WERCS: It stands for Worldwide Environmental Regulatory Compliance Solutions. Manufacturers submit regulatory information to WERCS for

certification.This information allows retailers to understand the requirements for shipping, handling, storing, and disposing of WERC-certified

products. It also aids in a retailer’s sustainability goals and compliance with all federal, state, and local regulations.

Bureau of Indian Standards (BIS): The national standards body of India, responsible for the development and implementation of standards for

various products and services.

Operating Environment

The AS502030 3.7V 250mAh is designed to perform well across a wide range of environmental conditions:

Working Temperature Range:

Charging Temperature: 0~+45℃ Max Charge: 50mA

+10~45℃  Max Charge: 250mA

Discharging Temperature: -20~+60℃

Recommended storage temperature: 25±2℃,at the shipment state

Less than 1 month: -10~+45℃

Less than 3 months: -10~+35℃

Less than 6 months: -10~+30℃

Applications

The versatile AS502030 3.7V 250mAh lipo battery is ideal for numerous applications, including:

Bluetooth headsets, Bluetooth speakers, Smart digital watches, Emergency lighting and Security systems, Gas detectors, Smart water meter,

Multicamera, Medical devices, Electronic cigarette, LED Driver, Sensor etc.

Advantages

High Energy Density: The AS502030 3.7V 250mAh lipo battery offers a compact design without compromising on performance, which is crucial

for portable devices.

Lightweight Design: Weighing significantly less than traditional batteries, it enhances the overall portability of gadgets.

Durable Construction: Designed to endure multiple charge and discharge cycles, the battery ensures long-term reliability and stability.

Versatile Applications: This lithium polymer battery is suitable for a wide range of applications, including wearable tech, drones, remote controls,

and consumer electronics.
