Introduction of basic parameters and battery performance of 401230 3.7V 120mAh lithium polymer battery

Battery Model and Basic Information

The AS401230 Lithium Polymer Battery, manufactured by Shenzhen A&S Power Technology Co., Ltd, represents a cutting-edge solution for

various electronic applications. This robust battery boasts a nominal voltage of 3.7V and an impressive capacity of 120mAh, making it an ideal

choice for devices requiring reliable and efficient power.

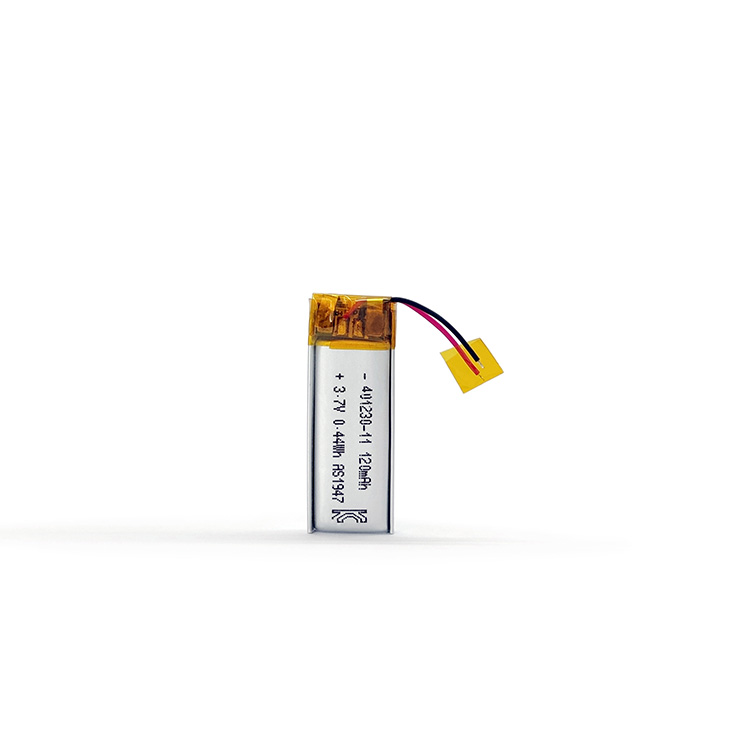

Battery Model: AS401230 3.7V 120mAh

Battery Type: Lithium Polymer Battery Cell or Pack

Manufacturer: Shenzhen A&S Power Technology Co., Ltd

Battery Performance and Parameters

The AS401230 battery boasts impressive performance metrics:

Typical Capacity: 120mAh

Minimum Capacity: 110mAh

Voltage: 3.7V

Max Discharge Current: 110mAh

Max Charge Current: 110mAh

Continuous Discharge Current: 50mAh

AC Impedance Resistance: ≤200mΩ Cell

                                            ≤300mΩ Battery Pack

Life Cycle: 10min rest period after standard charge, 0.5C discharge to a cut-off voltage of 3.0V, 10min rest period, the capacity shall be

measured after 500 cycles of standard charge and discharge at 25±5℃.

Warrenty: A&S power offers one-year gurantee period lithium polymer battery for our clients in case of cells with defects.

Physical Features

Despite its powerful capabilities, AS401230 3.7V 120mAh maintains a compact and lightweight design:

Size: 4.2 *12.5*27.0 mm（Thickness*Width*Height）

Weight: Approximately 2.0g

Cycle Life: 500 times

Life Usage: 1 year

The rectangle rechargeable lithium polymer battery cell or pack can be integrated into small, portable devices, while its cycle life ensures

long-term reliability.

Also, please note that we could do customization for clients according to requirements like maxmium size, peak discharge rating and

continuous discharge rating, connector(type), wires( NTC; length), PCB protection, and what devices you use for.

Safety Features

AS401230 3.7V 120mAh battery cell has passed UL1642,IEC62133(CB),CQC,RoHS and multi-safety inspections.

RoHS: RoHS stands for Restriction of Hazardous Substances. RoHS, also known as Directive 2002/95/EC, originated in the European

Union and restricts the use of specific hazardous materials found in electrical and electronic products (known as EEE).

UL1642 certification is essential for manufacturers and consumers of batteries, as it signifies that a battery has undergone thorough

testing and meets safety criteria for consumer electronics, electric vehicles, and medical devices. The certification requirements cover

lithium-ion batteries to avoid the risk of fire or explosion when they are used in products.

IEC62133 is a global safety standard for rechargeable lithium-ion batteries in gadgets. It ensures these batteries are safe, reducing risks

like fire and explosions. The standard includes tests for mechanical abuse, electrical abuse, and extreme temperatures.

The Care Quality Commission (CQC) is the independent regulator for health and social care services in England. Tasked with ensuring

that these services meet the required standards of quality and safety, the CQC plays a crucial role in protecting and promoting the

well-being of service users.

Protection Mechanisms

Over-charge Protection Voltage: 4.255-4.305V

Over-discharge Protection Voltage: 4.030-4.130V

Overcurrent protection current: 1.0~3.5A

Its protection circuit can provide multiple layers protection to avoid any internal short circuit or fire danger and set different protection

mechanisms to moniter battery working efficiency.

Operating Environment

The AS401230 is designed to perform well across a wide range of environmental conditions:

Working Temperature Range

Charging Temperature: 0~+45℃

                                    10~+45℃

Discharging Temperature:-20~+60℃

Recommended Storage Temperature Range: 25±2℃, at the shipment state

Less than 1 month: -10~+45℃

Less than 3 months: -10~+35℃

Less than 6 months: -10~+30℃

Applications

The versatile AS401230 battery is ideal for numerous applications, including:

Bluetooth headsets, Bluetooth speakers, Smart digital watches, Emergency lighting and Security systems, Gas detectors, Smart water

meter, Multicamera, Medical devices, Electronic cigarette, LED Driver, Sensor etc.

Advantages

High Energy Density: The AS401230 battery offers a compact design without compromising on performance, which is crucial for portable

devices.

Lightweight Design: Weighing significantly less than traditional batteries, it enhances the overall portability of gadgets.

Durable Construction: Designed to endure multiple charge and discharge cycles, the battery ensures long-term reliability and stability.

Versatile Applications: This lithium polymer battery is suitable for a wide range of applications, including wearable tech, drones, remote

controls, and consumer electronics.

Stay tuned for more updates on the latest advancements in battery technology. For further details about the AS401230 and other

innovative products, visit Shenzhen A&S Power Technology Co., Ltd’s official website https://www.szaspower.com/.
