Introduction of basic parameters and battery performance of 13700 3.7V 1100mAh lithium polymer battery

Battery Model and Basic Information

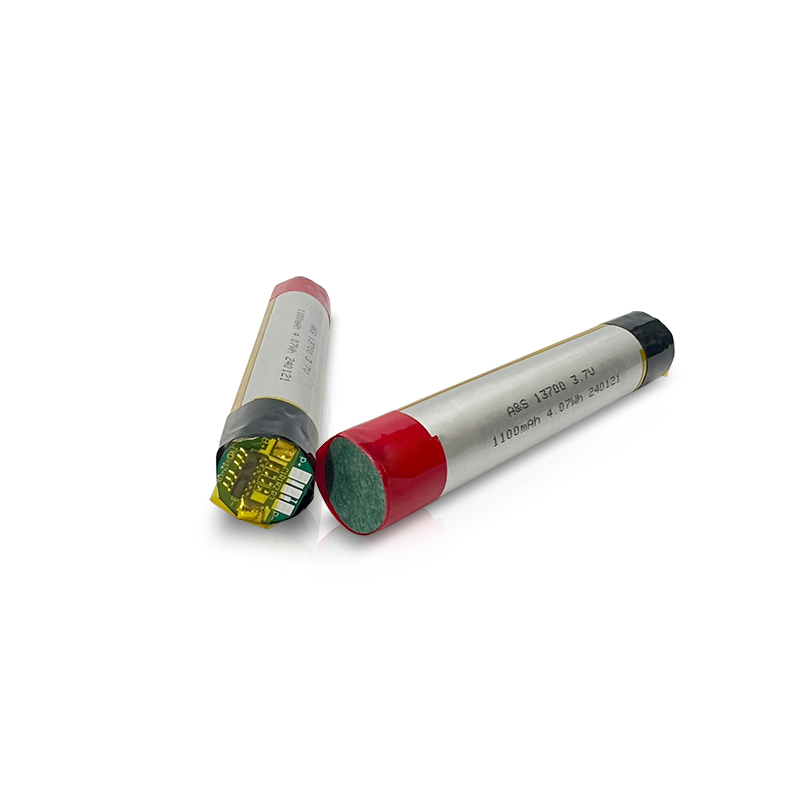

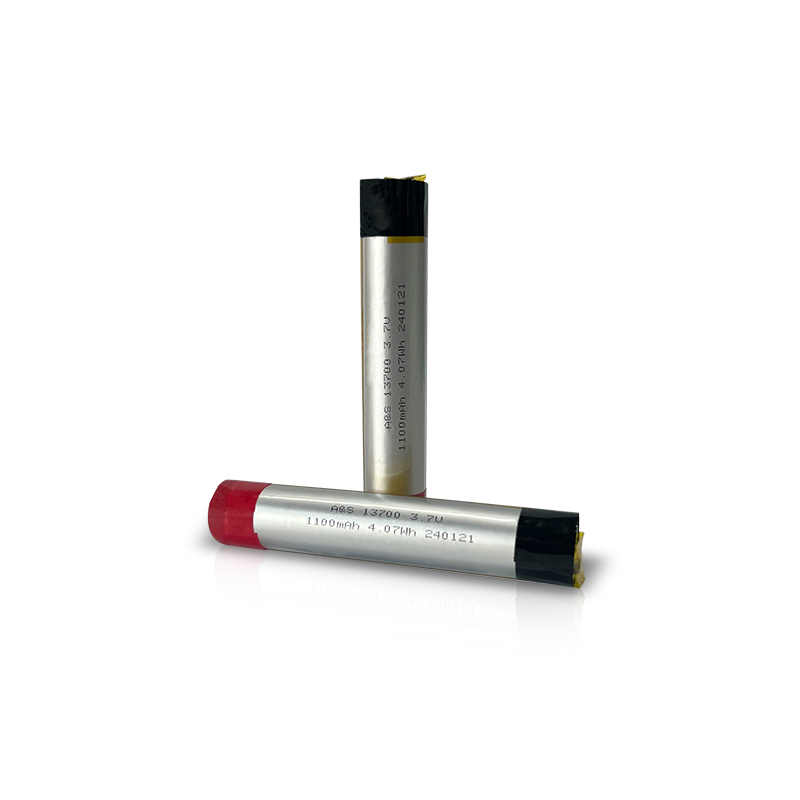

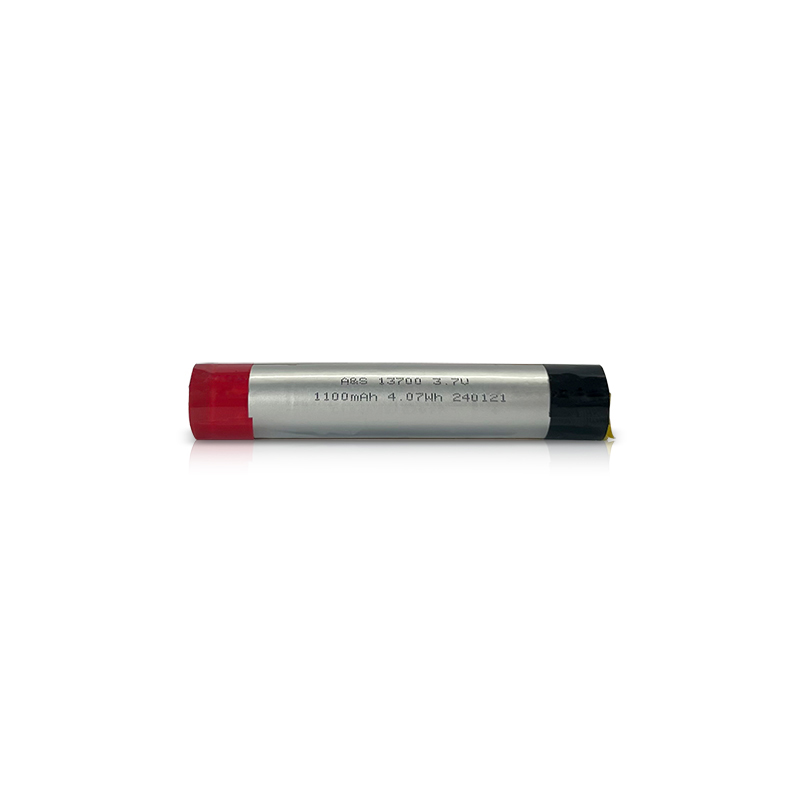

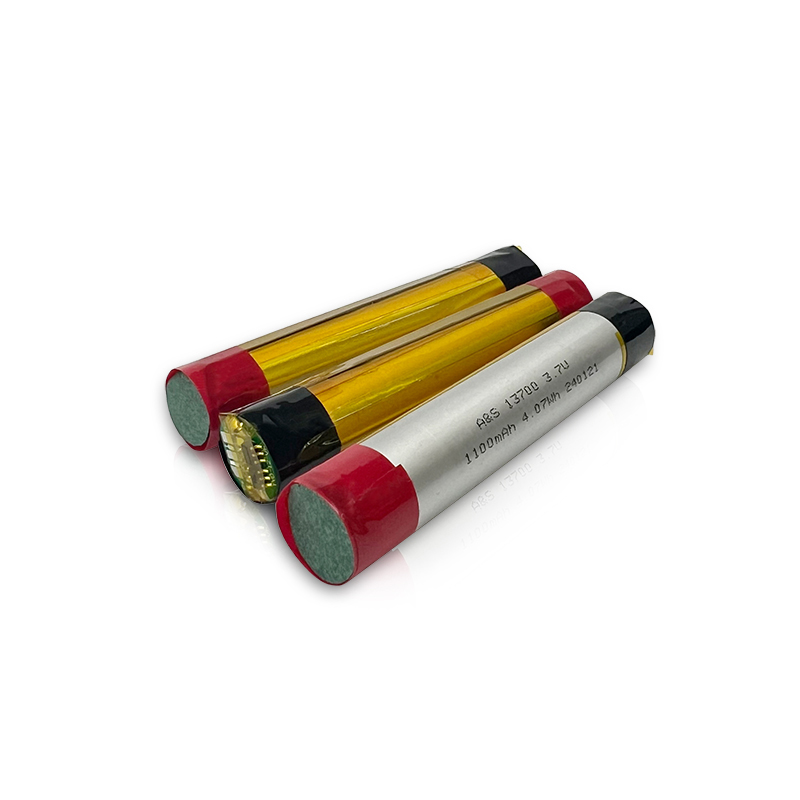

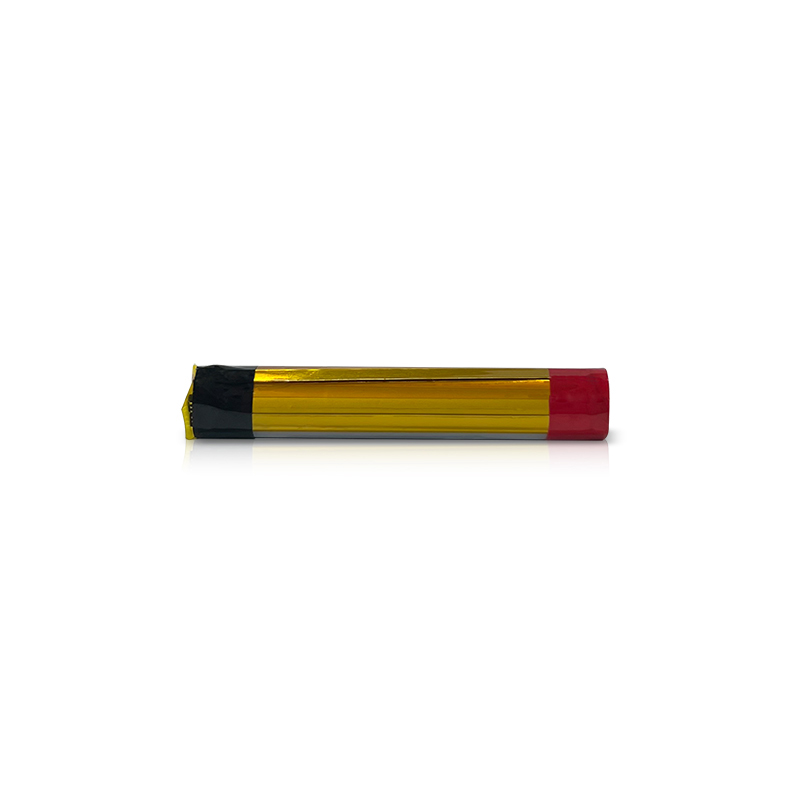

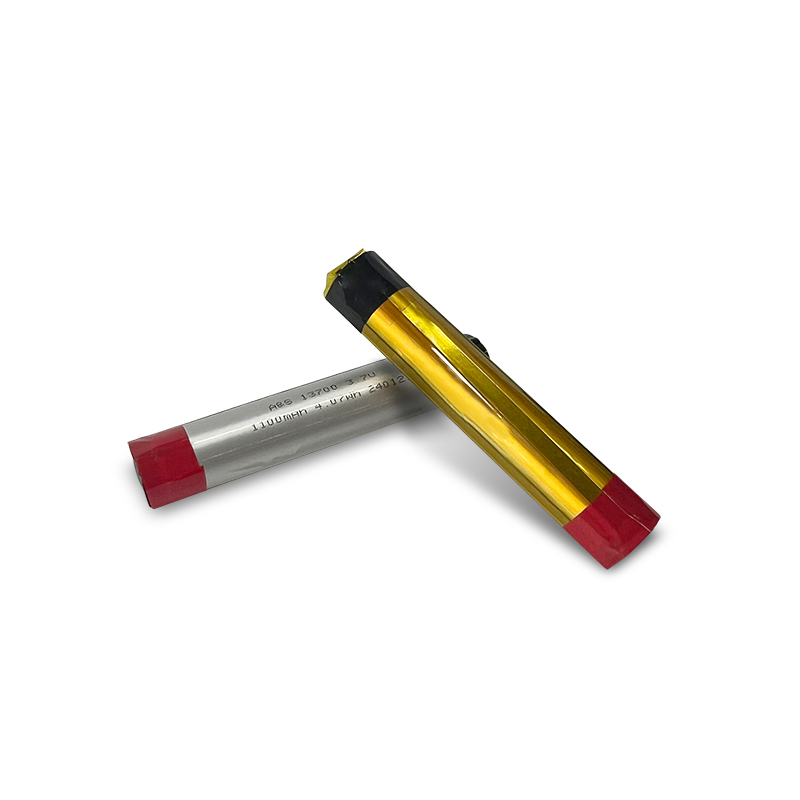

AS13700 3.7V 1100mah is a slim and medium rechargeable cylindrical lithium polymer battery cell, manufactured by Shenzhen

A&S Power Technology Co.,Ltd , a professional lithium polymer manufacturer.

Battery Performance and Parameters

With 1100mAh rated capacity and 3.7V standard voltage, this battery model can achieve

1C max charge current and max discharge current .These specification parameters can provide steady and reliable power,

to various electronic devices. Also, its AC Impedance Resistance≤180mΩ and Its Discharge Cut-off Voltage is 3.0V.

Physical Features

Despite its powerful capabilities, the AS13700 maintains a compact and lightweight design. For example, it has very limited

size: 13.5 mm *72.5 mm and long cycle life: 500 times. It weighs approximately 25g and can be used up to 12 months.

Additionally, Foreign clients can ususally customize battery size and shape. Connector, cables and pcb  can be added

with battery packs. The length of cables and connector type are also up to customers’ choices.

Safety Features

The model AS13700 doesnt have any safety certification yet at present but A&S Power can help do the security certification

for clients. Also its protection mechanisms can perfectly pass the certification tests.

Operating Environment

AS 13700 3.7V 1100mah should be used under certain conditions.

Working Temperature Range:

Charging Temperature:0~+45°C

Discharging Temperature: +10~+45°C

Storage Temperature Range:

Less than 1 month: -10~+45°C

Less than 3 months: -10~+35°C

Less than 3 months:-10~+30℃

Advantages and Disadvantages

Advantages:

The 13700 3.7V 1100mAh Li-Polymer battery stands out for its compact and lightweight design, making it ideal for wearable

devices, medical gadgets, and other small electronics. Its high energy density allows it to store a substantial amount of

power within a small size. The battery's stable 3.7V output ensures consistent performance, while its low self-discharge

rate means it can retain its charge for extended periods when not in use. Additionally, the flexible form factor of Li-Polymer

batteries provides design versatility, allowing them to be molded into various shapes to fit different devices.

Disadvantages:

However, the 13700 3.7V 1100mAh Li-Polymer battery has some limitations. Its 1100mAh capacity may not be sufficient

for high-power applications or devices that require prolonged battery life. The cost is generally higher compared to other

battery types like NiMH or alkaline batteries. Safety concerns also arise, as these batteries require proper handling and

protection circuits to prevent overcharging and overheating, which could lead to fire hazards. Moreover, their performance

can be adversely affected by extreme temperatures, impacting both efficiency and lifespan. For further details about the

AS13700 3.7V 1100mah and other battery models, visit Shenzhen A&S Power Technology Co., Ltd’s official website

https://www.szaspower.com/ .
