Introduction of basic parameters and battery performance of 104049 3.7V 2600mAh lithium polymer battery

Battery Model and Basic Information

The AS104049 Lithium Polymer Battery, manufactured by Shenzhen A&S Power Technology Co., Ltd, represents a cutting-edge solution for

various electronic applications. This robust battery boasts a nominal voltage of 3.7V and an impressive capacity of 2600mAh, making it an

ideal choice for devices requiring reliable and efficient power.

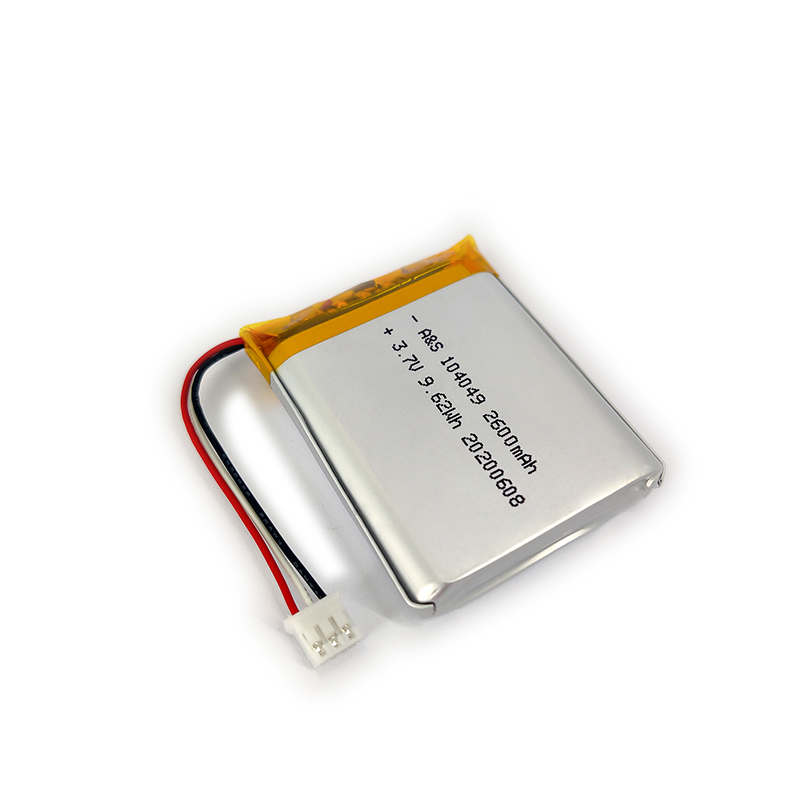

Battery Model: AS104049 3.7V 2600mAh

Battery Type: Lithium Polymer Battery Cell or Pack

Manufacturer: Shenzhen A&S Power Technology Co., Ltd

Battery Performance and Parameters

The AS104049 battery boasts impressive performance metrics:

Typical Capacity: 2600mAh

Minimum Capacity: 2500mAh

Voltage: 3.7V

Continuous Discharge Current: 520mAh

Max Discharge Current: 2600mAh

Max Charge Current: 2600mAh

AC Impedance Resistance: ≤60mΩ Cell

                                            ≤260mΩ Battery Pack

Life Cycle: 10min rest period after standard charge, 0.5C discharge to a cut-off voltage of 3.0V, 10min rest period, the capacity shall be

measured after 500 cycles of standard charge and discharge at 25±5℃.

Warrenty: A&S power offers one-year gurantee period lithium polymer battery for our clients in case of cells with defects.

Physical Features

Despite its powerful capabilities, the AS104049 3.7V 2600mAh maintains a compact and lightweight design:

Size: 10.0(Max) *40.0(Max)*49.5(Max) mm

Weight: Approximately 52.0g

Cycle Life: 500 times

Life Usage: 1 year

The rectangle rechargeable lithium polymer battery cell or pack can be integrated into small, portable devices, while its cycle life ensures

long-term reliability.

Also, please note that we could do customization for clients according to requirements like maxmium size, peak discharge curent rating and

continuous discharge rating, connector(type), wires(length), PCB protection, and what devices you use for.

Safety Features

The AS104049 battery adheres to international safety standards, ensuring that users benefit from a secure power source.

Security Certificates: UL1642, CB(2017), UN38.3, CE

CE certification verifys a battery meets EU safety, health and environmental protection requirements; UL1642 requires manufacture of

batteries undergone thorough testing and and meet safety criteria for consumer electronics, electric vechiles, and medical devices;Battery

chemistries that are lithium-based must undergo UN38.3 testing requirements before being transported. This testing certifies that the

batteries are safe and will not pose a safety risk during shipping over air, water, rail, or road transportation methods;The CB system (IEC

system for the qualification testing and certification of electrical products) is an international system operated by IECEE. The certification

bodies of IECEE member states test the safety performance of electrical products based on the IEC standard. The test results are the

CB test report and CB. The test certificate is mutually recognized in the IECEE member states.

Protection Mechanisms:

Over-charge Protection Voltage: 4.255--4.305V

Over-discharge Protection Voltage: 2.750--2.850V

Short Circuit Protection: 3.0~6.0A

Its protection circuit can provide multiple layers protection to avoid any internal short circuit or fire danger and set different protection

mechanisms to moniter battery working efficiency.

Operating Environment

The AS104049 is designed to perform well across a wide range of environmental conditions:

Working Temperature Range:

Charging Temperature: 0~+45℃ Max Charge: 520mA

+10~+45℃ Max Charge: 2600mA

Discharging Temperature:-20~+60℃

Recommended Storage Temperature Range: 25±2℃, at the shipment state

Less than 1 month: -10~+45℃

Less than 3 months: -10~+35℃

Less than 6 months: -10~+30℃

Applications

The versatile AS104049 battery is ideal for numerous applications, including:

Bluetooth headsets, Bluetooth speakers, Smart digital watches, Emergency lighting and Security systems, Gas detectors, Smart water

meter, Multicamera, Medical devices, etc.

Advantages

High Energy Density: The AS104049 battery offers a compact design without compromising on performance, which is crucial for portable

devices.

Lightweight Design: Weighing significantly less than traditional batteries, it enhances the overall portability of gadgets.

Durable Construction: Designed to endure multiple charge and discharge cycles, the battery ensures long-term reliability and stability.

Versatile Applications: This lithium polymer battery is suitable for a wide range of applications, including wearable tech, drones, remote

controls, and consumer electronics.
