UL2054/CB/CQC/UN38.3 Certified Wholesale 553640 3.7v 850mAh Lithium Polymer Battery-LiPo Battery Manufacturer

UL2054/CB/CQC/UN38.3 Certified Wholesale 553640 3.7v 850mAh Lithium Polymer Battery

Details

Brief description Description :

Art No:AS553640 1.Voltage: 3.7v

Weight: 17.0g 2.Capacity: 850mAh

Size: 380 * 230 * 260 3.Certification: UL2054 ,CB, KC,UN38.3

Material:Lithium Cobalt Oxides 4.Application Field: Livestock Monitor,SecurityCamera,Bluetooth Headset

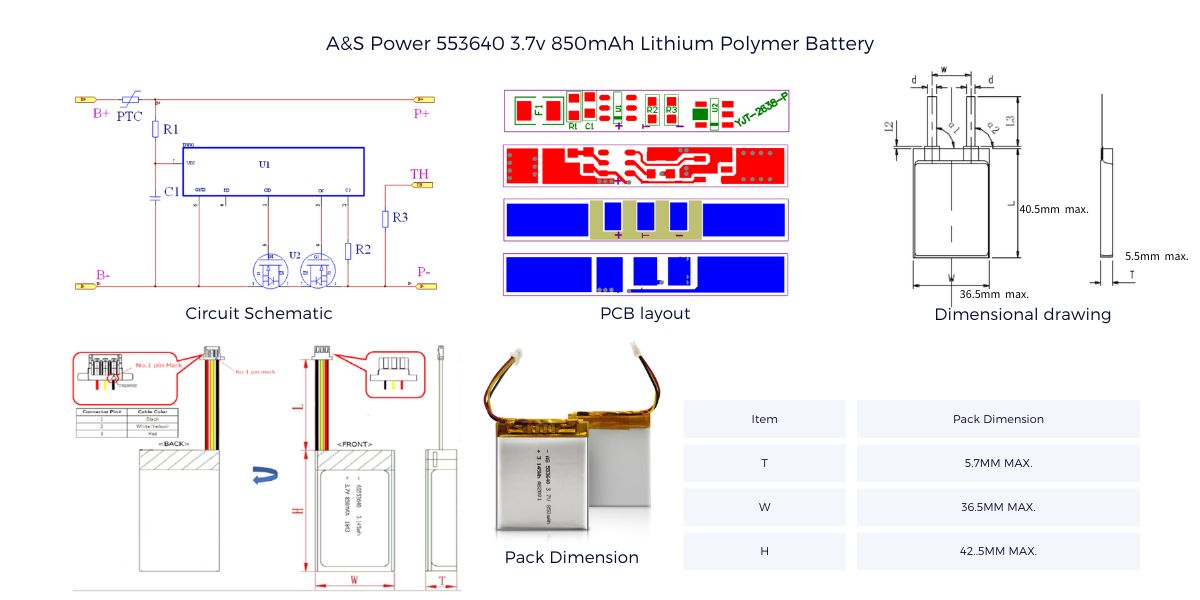

AS553640 3.7v 850mAh.jpg

Main parameter

Item			Rating	Note
3.1 Capacity		Typical	850mAh	From 4.2V to 3.0V by discharge current 0.2C.
		Minimum	830mAh
3.2 Nominal Voltage			3.7V
3.3 AC Impedance Resistance			≤600mΩ
3.4 Discharge Cut-off Voltage			3.00V
3.5 Charge Current			166 mA	Standard Charge
3.6 Charge voltage			4.2V
3.7 Max. Charge Voltage			4.23V
3.8 Charge Time			Approx 6 h	Standard Charge
3.9 Fast Charge current			830mA	10~45℃
3.10 Fast Discharge Current			830mA	1.0CmA
3.11 Weight			Approx 16.0g
3.12 Shipping Voltage			3.85-3.95V
3.13 Voltage decay rate			≈ 1.2mV/Day
3.14 Battery energy density			397Wh/L	8503700 By Typical 5.536*40 Dimension
3.15 Operating Temperature	Charge		0~+45℃
	Discharge		-20~+60℃
3.16 Storage Temperature	less than 1 month		-20~+45℃	Recommended storage temperature: 25±2℃,at the shipment state
	less than 3 months		-20~+35℃
	less than 6months		-20~+30℃


Dimensional Drawing of 553640 1S1P

Item	Pack Dimension
T	5.7 mm max.
W	36.5 mm max.
H	42.5 mm max.
L	45~50.mm (UL3302 30# AWG)
Connector	JST-SUHR-03V-S-B


Application field:

AR/VR	smart door lock	wireless walkie-talkie	Baby monitor
Smart helmet	portable mini air purifier	wireless communicator	cctv camera
portable DVD	IP phone	security camera	IOT
Smart audio and video	Desk lamp	Multi-parameter monitor	Bar Code Scanner
radio	Cabinet Light	pulse oximeter	pos machine


Appearance

There shall be no such defect as scratch, flaw, crack, rust, leakage, which may adversely affect commercial

value of battery.


Performance

1. Standard Test Conditions

Test should be conducted with new batteries within one month after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless

otherwise defined, test and measurement shall be done under temperature of 25±2℃ and relative humidity of 45~85%. The test results are not affected evidently by such

conditions of temperature 15~30℃ or humidity 25~85%RH.5.2 Measuring Instrument or Apparatus.

2. Measuring Instrument or Apparatus

2.1 Dimension Measuring Instrument

The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.
