303080 3.7v 850mAh Lipo Battery Got IEC62133/UN38.3 Certificate

303080 3.7v 850mAh Lipo Battery Got IEC62133/UN38.3 Certificate

Details

Brief description                                                                                             Description :

Art No :AS303080                                                                                                                       1.Voltage: 3.7v

Weight:18.0g                                                                                                                              2.Capacity: 850mAh

Size :3.0*30*80mm                                                                                                                      3. Certification: IEC62133/UN38.3/CCC

Material:Li-Polymer Battery                                                                                                         4.Application Field: Livestock Monitor,Security Camera,Bluetooth Speaker




Item

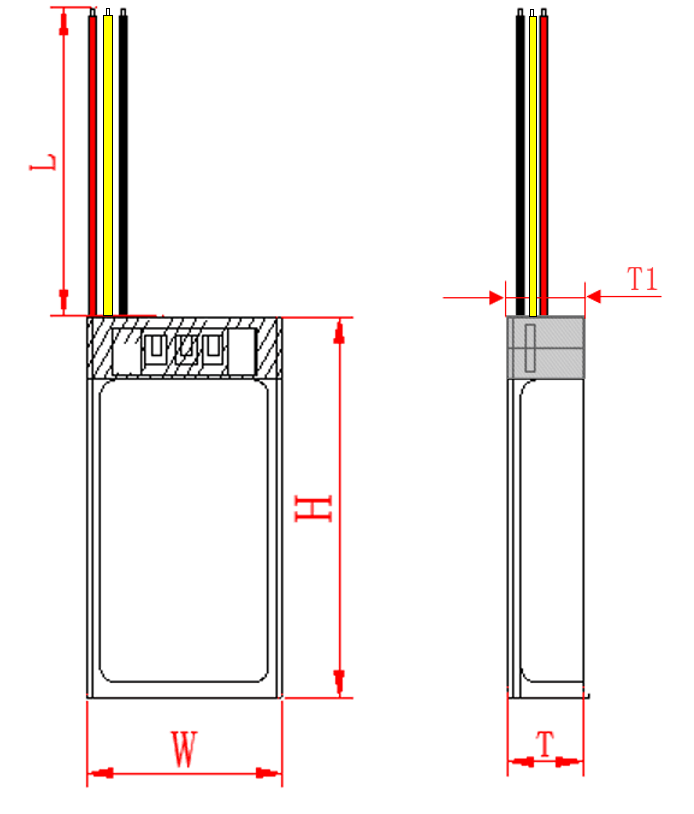

Pack Dimension

T

3.0 mm max.Max 3.15mm after 500 cycles life

T1

3.2 mm max.

W

30.0±0.2 mm.

H

82.0±0.5 mm.

L

50.0±3.0 mm (UL3302 24# AWG)




Main parameter


Item

Rating

Note

Capacity

Typical

850 mAh

From 4.2V to 3.0V by discharge  current 0.2C.

Minimum

830 mAh

Nominal Voltage

Average  3.7V


AC Impedance Resistance

180mΩ


Discharge Cut-off Voltage

3.00V


Charge Current

170 mA

Standard Charge

Charge voltage

4.2V


Max.Charge Voltage

4.23V


Charge Time

Approx 6 h

Standard Charge

Fast Charge current

850mA

10~45

Fast Discharge Current

850mA

1.0CmA

Weight

Approx 18.0g


Shipping Voltage

3.85-3.95V


Operating Temperature

Charge

0~+10

Max Charge:0.5C(425mA)

10~+45

Max Charge: 1C(850mA)

Discharge

-20~+60


Storage Temperature

less than 1 month

-20~+45

Recommended storage

temperature: 25±2,at the

shipment state

less than 3 months

-20~+35

less than 6months

-20~+30







Application field:


mart wearable device

smart mouse

anti-theft attendance machine

Eye massager

Samrt Watch

Fever clothing, warmer clothing

Siren, buzzer, warning device

Tire pressure mointor

Smart Bracelet

heated gloves

Wireless sensor

GPS Tracker

Smart Shoes

mini fan

medical belts

Bicycle Lamp

Luminous shoes

Hand sprayer

Facial massager

Electric toy

bluetooth headset

Bluetooth remote control

Facial cleanser





A&S Power Battery with Terminations, Pins, Tags

Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors.  We hope you find the one in our product

list and suite you the best.  If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.


Custom Battery Pack

We manufacture custom battery pack assembly for electronic, industry and OEM business for decades.  We are proud to serve our customers, some of them are world's

most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production.  Our Customer Service can help for engineering

suggestion to meet your specification.
