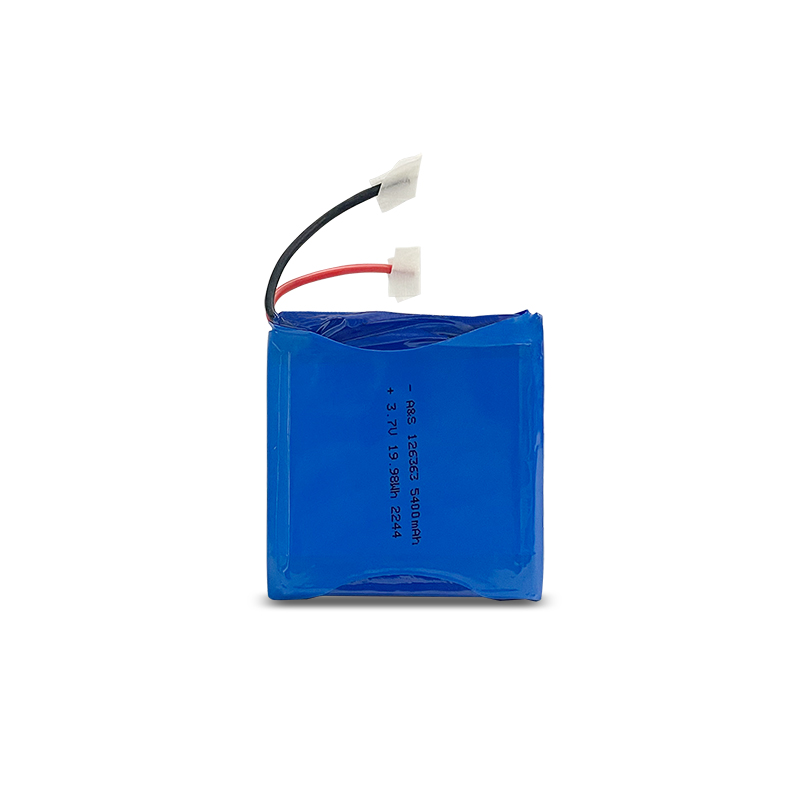

126363 pouch Cell 3.7V 5400mAh Lipo Battery with UL1642/UN38.3 Certification-LiPo Battery Manufacturer

126363 pouch Cell 3.7V 5400mAh Lipo Battery with UL1642/UN38.3 Certification

Details

Brief description Description :

Art No :AS126363 1.Voltage: 3.7v

Weight:135g 2.Capacity: 5400mAh

Size :12*63.5*65.5 mm 3.Certification: UL1642/UN38.3

Material:Li-Polymer Battery 4.Application: Toys, Power Tools, Home Appliances

Warranty:3months-1year

Cycle life:500+ cycles battery


Main parameter

Item			Rating	Note
3.1 Capacity		Typical	5400mAh	Discharge:0.2CmA cut off Voltage:3.0V for cell
		Minimum	5300mAh
3.2 Nominal Voltage			Average 3.7V	Discharge:0.2CmA cut off Voltage:3.0V for cell
3.3 AC Impedance Resistance			≤500mΩ
3.4 Discharge Cut-off Voltage			3.00V
3.5 Charge Current			1080mA	Standard Charge
3.6 Charge Voltage			4.2V
3.7 Max. Charge Voltage			4.23V
3.8 Charge Time			Approx 6h	Charge: 0.2CmA
3.9 Max. Charge Current			5400mA	1.0CmA
3.10 Max. Discharge Current			5400mA	1.0 CmA
3.11 Weight			Approx 135g
3.12 Operating Temperature	Charge		0~+45°C
	Discharge		-20~+60°C
3.13 Storage Temperature	less than 1 month		-20~+45°C	Recommended storage temperature: 20°C,at the shipment state
	less than 3 months		-20~+35°C


Application field:

mart wearable device	smart mouse	anti-theft attendance machine	Eye massager
Samrt Watch	Fever clothing, warmer clothing	Siren, buzzer, warning device	Tire pressure mointor
Smart Bracelet	heated gloves	Wireless sensor	GPS Tracker
Smart Shoes	mini fan	medical belts	Bicycle Lamp
Luminous shoes	Hand sprayer	Facial massager	Electric toy
bluetooth headset	Bluetooth remote control	Facial cleanser


A&S Power Battery with Terminations, Pins, Tags

Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product

list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.

Custom Battery Pack

We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's

most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering

suggestion to meet your specification.

A&S Power Battery Quality Control & Compliance

Check A&S Power Manufacturing site and product compliance.

Safety Handling and Product Design with A&S Power Lithium Battery

Handling Lithium Battery Safely

Certification:


A&S Power Certification.jpg
