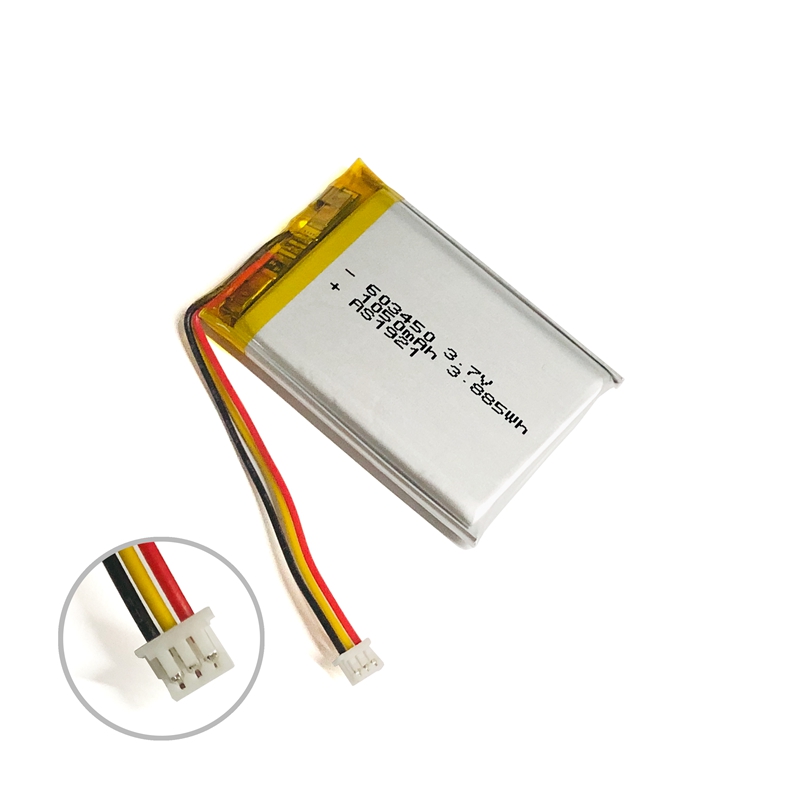

UL 603450 3.7v 1050mAh Lithium Polymer Battery Cells For Led Light

Details

Brief description Description :

Art No :AS603450 1.Voltage: 3.7v

Weight:20.5g 2.Capacity: 1050mAh

Size :6.2*35*52.5 mm 3.Certification: UL2054/KC/UN38.3/CCC

Material:Li-Polymer Battery 4.Application:Livestock Monitor,SecurityCamera,Bluetooth Headset

Warranty:3months-1year

Cycle life:500+ cycles battery


Main parameter

Item			Rating	Note
3.1 Capacity		Typical	1000mAh	Discharge:0.2CmA cut off Voltage:3V for cell
		Minimum	980mAh
3.2 Nominal Voltage			Average 3.7V	Discharge:0.2CmA cut off Voltage:3V for cell
3.3 AC Impedance Resistance			≤155mΩ
3.4 Discharge Cut-off Voltage			3.00V
3.5 Charge Current			200mA	Standard Charge
3.6 Charge Voltage			4.2V
3.7 Max. Charge Voltage			4.23V
3.8 Storage humidity			< 75%RH	Hygrometer
3.9 Fast Charge current			1000mA	1.0CmA
3.10 Fast Discharge Current			1000mA	1.0CmA
3.11 Weight			Approx 20.5g
3.12 Operating Temperature	Charge		0~+45℃	Can be operated at max Altitude 3000m and 8%~90% humidity.
	Discharge		-20~+60℃	Get more than 50% discharge capacity (typical) in -15°C or +55°C.
3.13 Storage Temperature	Less than 1 month		-20~+45℃	Recommended storage temp: 20℃,at the shipment state.
	Less than 3 months		-20~+35℃
	Can be stored at -25 ℃ or +70℃ in 48hrs.


Application field:

mart wearable device	smart mouse	anti-theft attendance machine	Eye massager
Samrt Watch	Fever clothing, warmer clothing	Siren, buzzer, warning device	Tire pressure mointor
Smart Bracelet	heated gloves	Wireless sensor	GPS Tracker
Smart Shoes	mini fan	medical belts	Bicycle Lamp
Luminous shoes	Hand sprayer	Facial massager	Electric toy
bluetooth headset	Bluetooth remote control	Facial cleanser


A&S Power Battery with Terminations, Pins, Tags

Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product

list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.

Custom Battery Pack

We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's

most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering

suggestion to meet your specification.

A&S Power Battery Quality Control & Compliance

Check A&S Power Manufacturing site and product compliance.

Safety Handling and Product Design with A&S Power Lithium Battery

Handling Lithium Battery Safely
